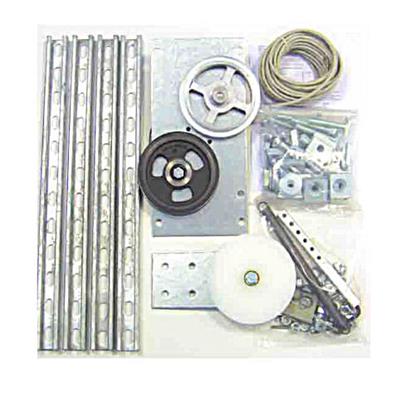

Encoder TYPE 10 Mechanic Set With SUPPORT PULLEY
Product Code: ART.9235
Product Description
Encoder TYPE 10 Mechanic Set With SUPPORT PULLEY.
TECHNICAL INFORMATION:
Max. lifting height: 90m.
Max. rated speed: 5 m/s.
Toothed belt:
Special toothed-belt b=10mm ready made for the delivery-length: 150m, 175m, 200m.
Calculation of the required belt-length: lifting height x 2 + 10m.
Example for a lifting height for 80m: 80m x 2 + 10m 170m=> 175m belt-length.
If the speed is higher than 1.6 m/s it is required to choose the belt-length according to the overdriving.
Please use the PDF Link below to identify the parts that you require. The ART. numbers can then be selected from the drop down box below.
