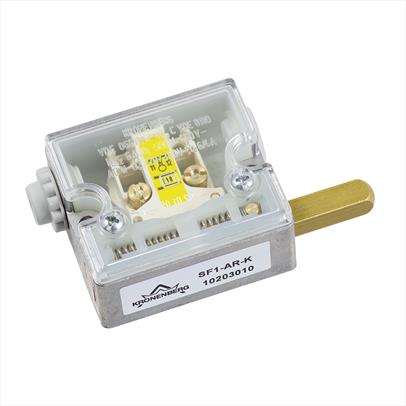

SF1-K Pin-Type Contact - Spring Return

Product Code: SF1-AR-K

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

The SF1-K Pin-Type Contact is a safety switch featuring forced actuation. The Switch is suited for all safety circuits, for instance for the speed control. Predefined positions of mechanically moving parts are monitored. The actuation takes place via a pin with a rounded attachment.

Features:

  • Actuator made from brass with rounded pin
  • Actuation direction changeable
  • Robust metal enclosure
  • Transparent cover for function control
  • Guided pressure return spring
  • Positively driven normally closed contact
  • Cable gland from both sides possible

Technical Data:

Norms: EN 81-20 , EN 81-50 , EN 60947-5-1
Switching Capacity: Ui = 500V , Ith = 6A , Uimp = 4kV AC-15: Ue = 230V Ie = 2A , DC-13: Ue = 200V Ie = 0.5A
Shortcircuit Capacity: T 6A , F 10A
Contact Material: Fine Silver
Actuation Force: 15N (Without stay-put feature) : 5N (With stay-put feature)
Connection: By slot nut max. 2.5mm² cable gland 2x M16 x 1.5 with 1x clamping gland 1x plug
Level of Protection: IP40, Insulated
Ambient Air Temperature: -30 °C up to +80 °C
Installation Position: Any
​Weight: 150g
