Product Description
Technical Information:

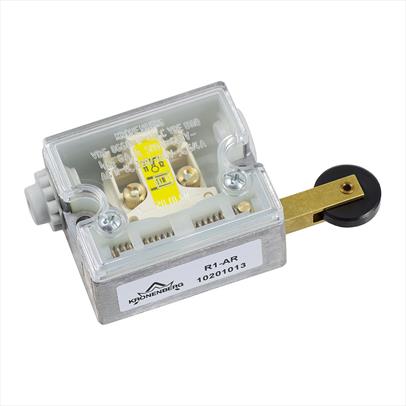

The R1 Roller Pin-Type Contact is a safety switch featuring forced actuation. The Switch is suited for all safety circuits, for instance for the speed control. Predefined positions of mechanically moving parts are monitored. The actuation takes place via a roller parallel to the base.
Features:
- Actuation roller made form wear resistant plastic
- Available with either spring return or stay put features
- Actuation direction can be converted
- Robust metal enclosure
- Transparent cover for function control
- Positively driven normally closed contact
- Cable gland from both sides possible
Technical Data:
Norms: EN 81-20 , EN 81-50 , EN 60947-5-1
Switching Capacity: Ui = 500V , Ith = 6A , Uimp = 4kV AC-15: Ue = 230V Ie = 2A , DC-13: Ue = 200V Ie = 0.5A
Shortcircuit Capacity: T 6A , F 10A
Contact Material: Fine Silver
Actuation Force: 15N (Without stay-put feature) : 5N (With stay-put feature)
Connection: By slot nut max. 2.5mm² cable gland 2x M16 x 1.5 with 1x clamping gland 1x plug
Level of Protection: IP40, Insulated
Ambient Air Temperature: -30 °C up to +80 °C
Installation Position: Any
Weight: 150g
