Upstands For Polyurethane Buffers - Fully Adjustable
Product Code: ART.78460
Product Description

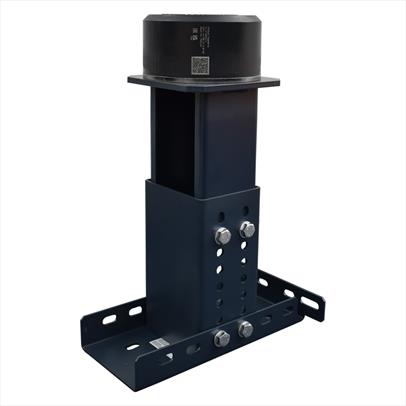

Upstands For Polyurethane Buffers
These telescopic buffer supports are excellently suitable for new construction and modernisation in the shaft pit.
The exact height can be adjusted in the pit. The buffer height can also be modified, e.g. if the distance, which the lift can be moved below the lowest landing, is changed. The buffer supports consist of powder coated steel sheet. The buffer can be screwed to the floor with anchor bolts or it can be fixed in the pit with other stationary parts of the lift.
Maximum charge 2000kg per support
Maximum rated velocity 1m/s

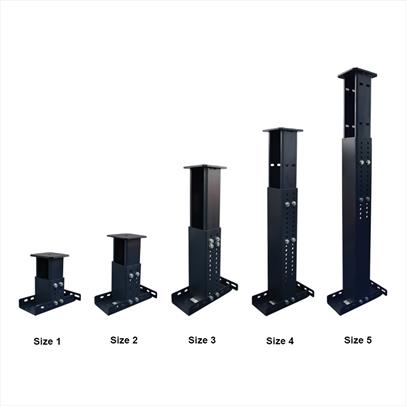

5 sizes available.
Size 1 - Height adjustable from 200mm - 282mm
Size 2 - Height adjustable from 283mm - 414mm
Size 3 - Height adjustable from 415mm - 720mm
Size 4 - Height adjustable from 721mm - 1020mm
Size 5 - Height adjustable from 1021mm - 1400mm
Designed to be used with the following two buffer types - Sold separately
| Lift buffer according to EN 81-20/ 50 | TYPE D1 ARTICLE NO. 78471 |
| Maximum rated velocity acc. to EN 81-20/ 50 with type D1 | 1.00 m/s 0.63 m/s |
| Minimum charge acc. to EN 81-20/ 50 with type D1 | 220 kg 200 kg |
| Maximum charge acc. to EN 81-20/ 50 with type D1 | 700 kg 1500 kg |
| Diameter Ø acc. to EN 81-20/ 50 with type D1 | Ø 100 mm x 80 mm |
| Lift buffer according to EN 81-20/50 | TYPE D5 ARTICLE NO. 78472 |
| Maximum rated velocity acc. to EN 81-20/ 50 with type D5 | 1,00 m/s 0,63 m/s |
| Minimum charge acc. to EN 81-20/ 50 with type D5 | 650 kg 600 kg |
| Maximum charge acc. to EN 81-20/ 50 with type D5 | 2700 kg 7500 kg |
| Diameter Ø acc. to EN 81-20/ 50 with type D5 | Ø 165 mm x 80 mm |
Please select the appropriate buffer upstand and Polyurethane buffer from the drop down box above or view our alternate range below.
