WECO Safety Edge - SIX Series 'Ultraslim' - 6.6mm - 230VAC

Product Code: 03.G5.SIX174

Members - please login for prices

How to use Order Form?

Product Description

WECO Safety Edges - SIX Series 'Ultraslim' - 6.6mm

The SIX Series Safety Edges are perfect for installations with limited space and can be installed in both static and dynamic locations.

SIX Series Clips, shown in the second image, are available.

Technical Information:

  • 126/154/169/174/194 beams from 24/32/35/36/40 diodes
  • Standard height of 2000mm
  • Detecting range of 4000mm
  • Immune to sunlight
  • IP54 rating

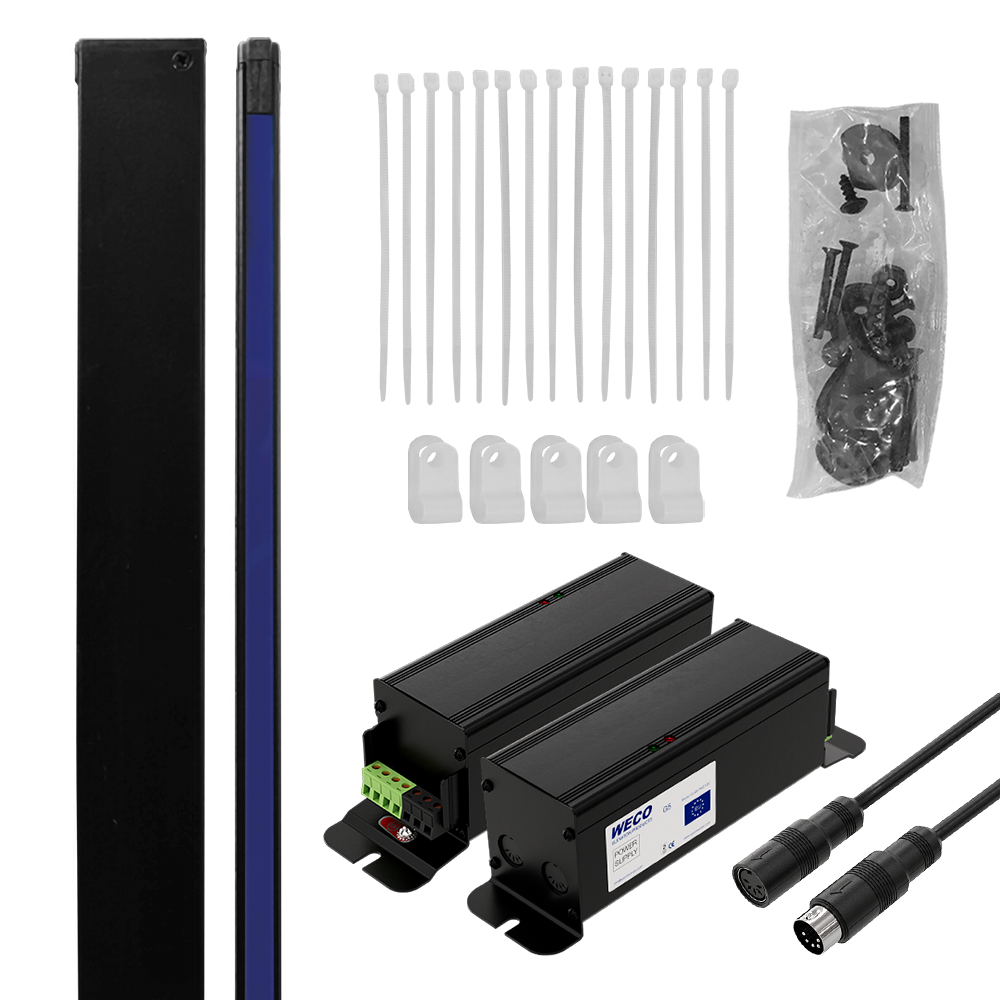

Supplied with all necessary fixings for a hassle-free installation.

03.G5.SIX174 is available from stock.


Technical Specification: 03.G5.SIX126 03.G5.SIX154 03.G5.SIX169 03.G5.SIX174 03.G5.SMX194
Max Number of Beams 126 154 169 174 194
No. of Diodes 24 32 35 36 40
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1841mm 1841mm 1617mm 1655mm 1855mm
Distance Between Diodes 58.80mm 58.80mm 47.50mm 47.50mm 47.50mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption ≤4w or 100mA at 24VDC
Power Supply Voltage 220VAC ±15%
