WECO Safety Edge - P Series 'Leading Edge' - 16.5mm - 24VDC / 230VAC

Product Code: 03.G5.P174

Members - please login for prices

How to use Order Form?

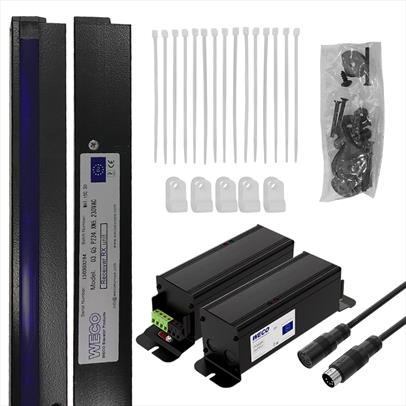

Product Description

WECO Safety Edges - P Series 'Leading Edge' - 4.99mm

The P Series Safety Edge is meant for large heavy doors that have a clutch in the middle of the panel. It was designed for GAL-type doors with heavy construction and a full-length box section.
It is suitable for wall mounting in elevators without car doors and can be installed in both static and dynamic locations.

Brackets are available.

Technical Information:

  • For GAL-type doors
  • 154/174/234 beams from 32/36/48 diodes
  • Standard height of 2000mm
  • Detecting range of 4000mm
  • Immune to sunlight
  • IP54 rating

Supplied with all necessary fixings for a hassle-free installation.


Technical Specification: 03.G5.P154 03.G5.P174 03.G5.P234.FED.230
Max Number of Beams 154 174 -234, when TX & RX are 500mm apart
-142 permanent beams
No. of Diodes 32 36 48
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1841mm 1665mm 1900mm
Distance Between Diodes 58.8mm 47.5mm 40mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±20mm (10°)
Horizontal: ±3mm (7°)
Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption ≤4w or 100mA at 24VDC ≤4w or 100mA at 24VDC ≤4w
Power Supply Voltage 10-30VDC / 100VDC /
230VAC ±15% 50/60Hz
15-30VDC 220VAC ±15% 50/60Hz
