WECO Safety Edge - L Series 'Economy' - 11mm - 24VDC / 230VAC

Product Code: 03.G5.L169

Members - please login for prices

How to use Order Form?

Product Description

WECO Safety Edges - L Series 'Economy' - 11mm

The L Series Safety Edges are some of the most popular, versatile, and economical safety edges available on the market.
They are designed with an additional 'C' channel on the back for extra fixing options. It can be installed in both static and dynamic locations.

Brackets are available.

Technical Information:

  • 94/169 beams from 17/35 diodes
  • Standard height of 1800mm
  • Detecting range of 4000mm
  • Immune to sunlight
  • IP54 rating

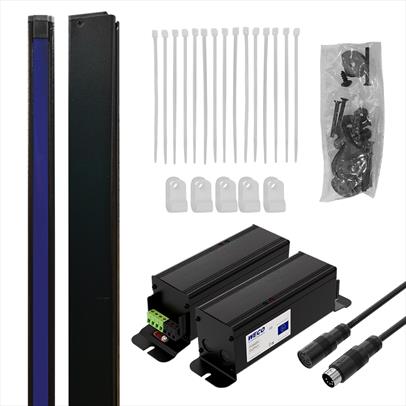

Supplied with all necessary fixings for a hassle-free installation.

03.G5.L174 is available from stock.
230VAC version is stocked, 24VDC version is also available on request.


Technical Specification: 03.G5.L94 03.G5.L169
Max Number of Beams 94 169
No. of Diodes 17 35
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1841mm 1617mm
Distance Between Diodes 117.50mm 47.50mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±20mm (10°)
Horizontal: ±3mm (7°)
Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption ≤4w or 100mA at 24VDC
Power Supply Voltage 230VAC
