WECO Safety Edge - J Series - 'Front-Facing' - 16.5mm - 230VAC

Product Code: 03.G5.J234

Members - please login for prices

How to use Order Form?

Product Description

WECO Safety Edges - J Series 'Front-Facing' - 16.5mm

The J Series Safety Edge is designed for use in doorless passenger/goods elevators. It is a high-performance model with 234 crossed beams and hidden fixing points.
The profile is usually wall or front mounted and can only be in static locations.

Brackets are available.

Technical Information:

  • 234 beams from 48 diodes
  • Standard height of 2000mm
  • Detecting range of 500mm - 4000mm
  • Immune to sunlight
  • IP54 rating

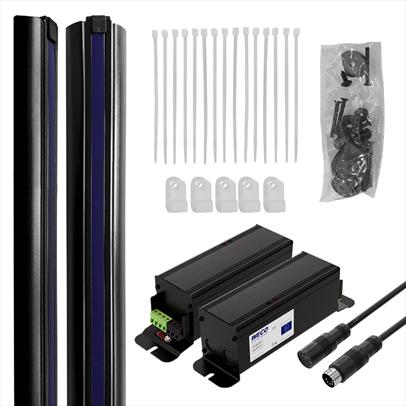

Supplied with all necessary fixings for a hassle-free installation.


Technical Specification: 03.G5.J234
Max Number of Beams 234
No. of Diodes 48
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1900mm
Distance Between Diodes 40mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption ≤4w or 100mA
Power Supply Voltage 220VAC ±15%, 50/60Hz
