WECO Safety Edge - B Series 'Slimline' - 10mm - 24VDC / 230VAC

Product Code: 03.G5.B174

Members - please login for prices

How to use Order Form?

Product Description

WECO Safety Edges - B Series 'Slimline' - 10mm

The B Series Safety Edges slimline profile makes them the perfect OEM replacements, suitable to be installed in both static and dynamic locations.
A versatile range of mounting clips and kits is available.

In addition, the BAM model with 94 beams is ideal for modernisation applications. Featuring an auto-scan function, which automatically switches off any beams that have been interrupted by a skate or interlock.

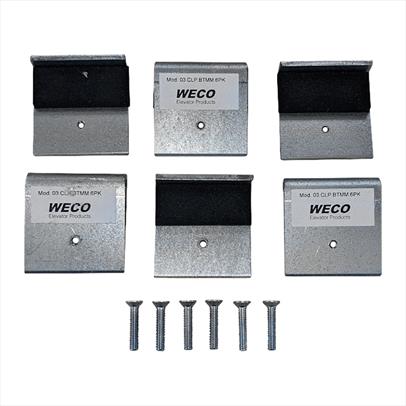

B Series Clips, shown in the second image, and brackets are available.

Technical Information:

  • 94//154/174/194 beams from 17/32/36/40 diodes
  • Standard height of 2000mm
  • Detecting range of 4000mm
  • Immune to sunlight
  • IP54 rating

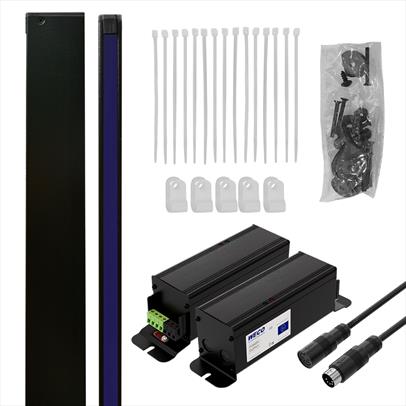

Supplied with all necessary fixings for a hassle-free installation.

03.G5.B174 & 03.G5.B154.1950 are available from stock.


Technical Specification: 03.G5.BAM.94 03.G5.B154.1950 03.G5.B174 03.G5.BMX.FED.230
Max Number of Beams 94 154 174 194
No. of Diodes 17 32 36 40
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1841mm 1841mm 1665mm 1855mm
Distance Between Diodes 117.50mm 58.80mm 47.50mm 47.50mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±20mm (10°)
Horizontal: ±3mm (7°)
Vertical: ±20mm (10°)
Horizontal: ±3mm (7°)
Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Vertical: ±15mm (7°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption ≤4w or 100mA at 24VDC
Power Supply Voltage 15VDC-30VDC 15VDC-30VDC 15VDC-30VDC 220VAC ±15%, 50/60Hz
