WECO Safety Edge - 3D Series '3D Detecting' - 12mm - 230VAC

Product Code: 03.G5.3D3.206

Members - please login for prices

How to use Order Form?

Product Description

WECO Safety Edges - 3D Series '3D Detecting' - 12mm

The 3D Series Safety Edge is both a 2D and a 3D door detector. With the 3D feature enabled, the 3D series can detect people outside of the cabin area.
It can be installed in both static and dynamic locations.

Brackets are available.

Technical Information:

  • 194/16 beams from 40/16 diodes (2D/3D)
  • Standard height of 2000mm
  • Detecting range of 3000mm (2D) & 1000mm (3D)
  • Immune to sunlight
  • IP54 rating

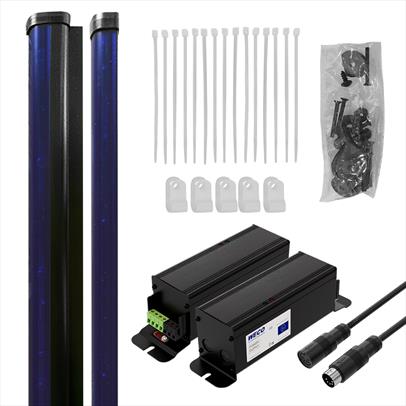

Supplied with all necessary fixings for a hassle-free installation.


Technical Specification: 03.G5.3D3.206
Max Number of Beams 2D: 194, 3D: 16
No. of Diodes 2D: 40, 3D: 16
Lowest Beam (APH) 20mm
Uppermost Bean (APH) 1841mm
Distance Between Diodes 47.50mm
Operating Temperature -20°C to +65°C
Alignment Tolerance Vertical: ±10mm (5°)
Horizontal: ±3mm (5°)
Profile Rating IP54
Power Consumption 4w
Power Supply Voltage 220VAC ±15%, 50/60Hz
