Fixed Pit Ladder Kit
Product Code: PL/1.5
Product Description
TECHNICAL INFORMATION:

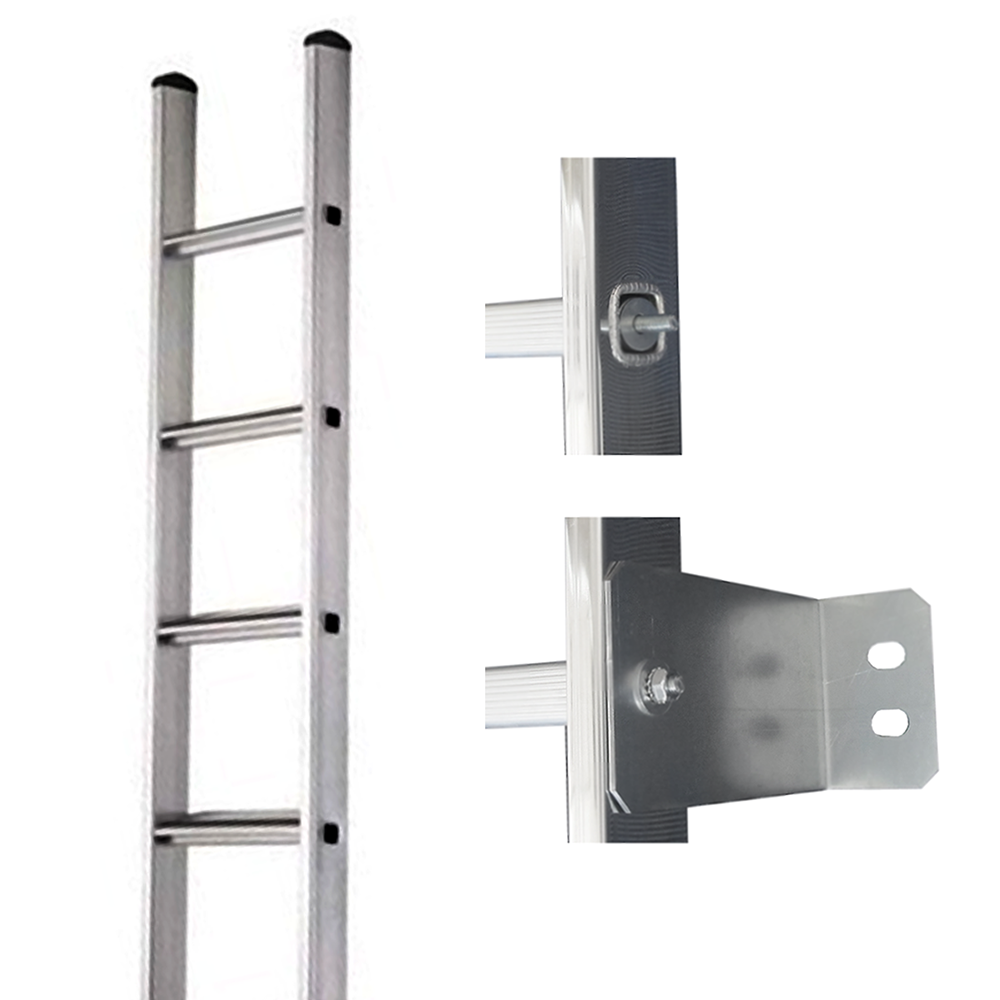

Aluminium ladder.
EN81- 20, EN131.

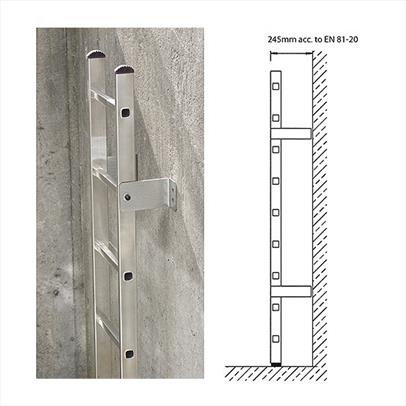

Total mounting depth off the wall is 245mm to EN81-20.
Ladder width 340mm
All necessary fixings including rawl plugs and screws
Five ladder lengths available.
- 1.96 - suitable for max pit depths of 0.80m
- 2.52 - suitable for max pit depths of 1.42m
- 3.08 - suitable for max pit depths of 1.98m*
- 3.64 - suitable for max pit depths of 2.54m*
*According to EN81-20 5.2.2.5c this ladder type is only permissable up to a depth of 1.50m
Advice:
According to EN81-20 the ladder has to be so long, that the upper end, or other suitable hand holds, reach out at least 1.10m above the landing door sillin the vertical position of the ladder.
