WECO Safety Edge - FOUR Series 'Superslim' - 4.99mm - 24VDC / 110VAC / 220VAC
Product Code: 03.G5.FOUR
Product Description
WECO Safety Edges - FOUR Series 'Superslim' - 4.99mm
The FOUR Series Safety Edge is the thinnest elevator door detector in the world, suitable for installations with very little space. Unpainted edges have a profile of just 4.99mm thin.
They can only be installed in static locations.
Brackets are available.
Technical Information:
- 234 beams from 96 diodes in TX / 48 diodes in RX
- Standard height of 2000mm
- Detecting range of 500mm - 4000mm
- Immune to sunlight
- IP54 rating

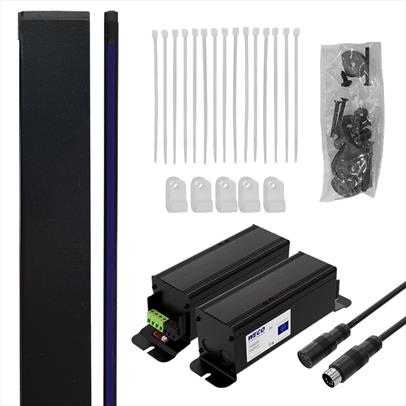

Supplied with all necessary fixings for a hassle-free installation.
| Technical Specification: | 03.G5.FOUR.LOK.230 | |
|---|---|---|
| Max Number of Beams | 234 | |
| No. of Diodes | 96x Diodes in TX, 48x Diodes in RX |
|
| Lowest Beam (APH) | 20mm | |
| Uppermost Bean (APH) | 1841mm | |
| Distance Between Diodes | 20mm in TX, 40mm in RX |
|
| Operating Temperature | -20°C to +65°C | |
| Alignment Tolerance | Vertical: ±3mm (2°) Horizontal: ±1mm (2°) |
|
| Profile Rating | IP54 | |
| Power Consumption | ≤4w or 100mA at 24VDC | |
| Power Supply Voltage | 24VDC, 110VAC, 220VAC | |
