WECO Safety Edge - CDZ Series 'Front And Side Fixing' - 12mm - 230VAC
Product Code: 03.G5.CDZ.174.FD2
Product Description
WECO Safety Edges - CDZ Series 'Front And Side Fixing' - 12mm
The CDZ model is compact and versatile. It has front and side fixing points. Suitable for static and dynamic installation.

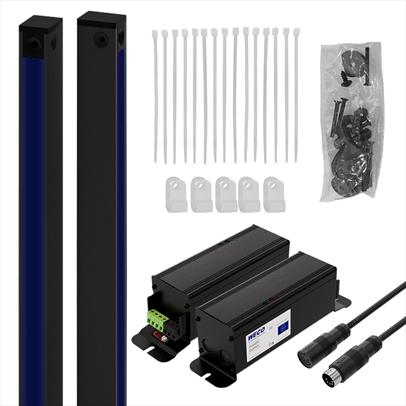

Includes cables, mounting accessories and a heavy-duty packaging.
Technical Information:
- 174 beams from 36 diodes
- Standard height of 2000mm
- Detecting range of 4000mm
- Immune to sunlight
- IP54 rating
Supplied with all necessary fixings for a hassle-free installation.
| Technical Specification: | 03.G5.CDZ.174.FD2 | 03.G5.CDZ.174.PNC |
|---|---|---|
| Max Number of Beams | 174 | |
| No. of Diodes | 36 | |
| Lowest Beam (APH) | 20mm | |
| Uppermost Bean (APH) | 1665mm | |
| Distance Between Diodes | 47.50mm | |
| Operating Temperature | -20°C to +65°C | |
| Alignment Tolerance | Vertical: ±15mm (7°) Horizontal: ±3mm (5°) |
|
| Profile Rating | IP54 | |
| Power Consumption | ≤4w or 100mA at 24VDC | |
| Power Supply Voltage | 15VDC-30VDC 220VAC±15% 50/60Hz |
15VDC-30VDC |
