FM300 BT - Lift Door Pressure Gauge - Wireless, Robust, Precise

Product Code: FT300BT-SY

Members - please login for prices

How to use Order Form?

Product Description

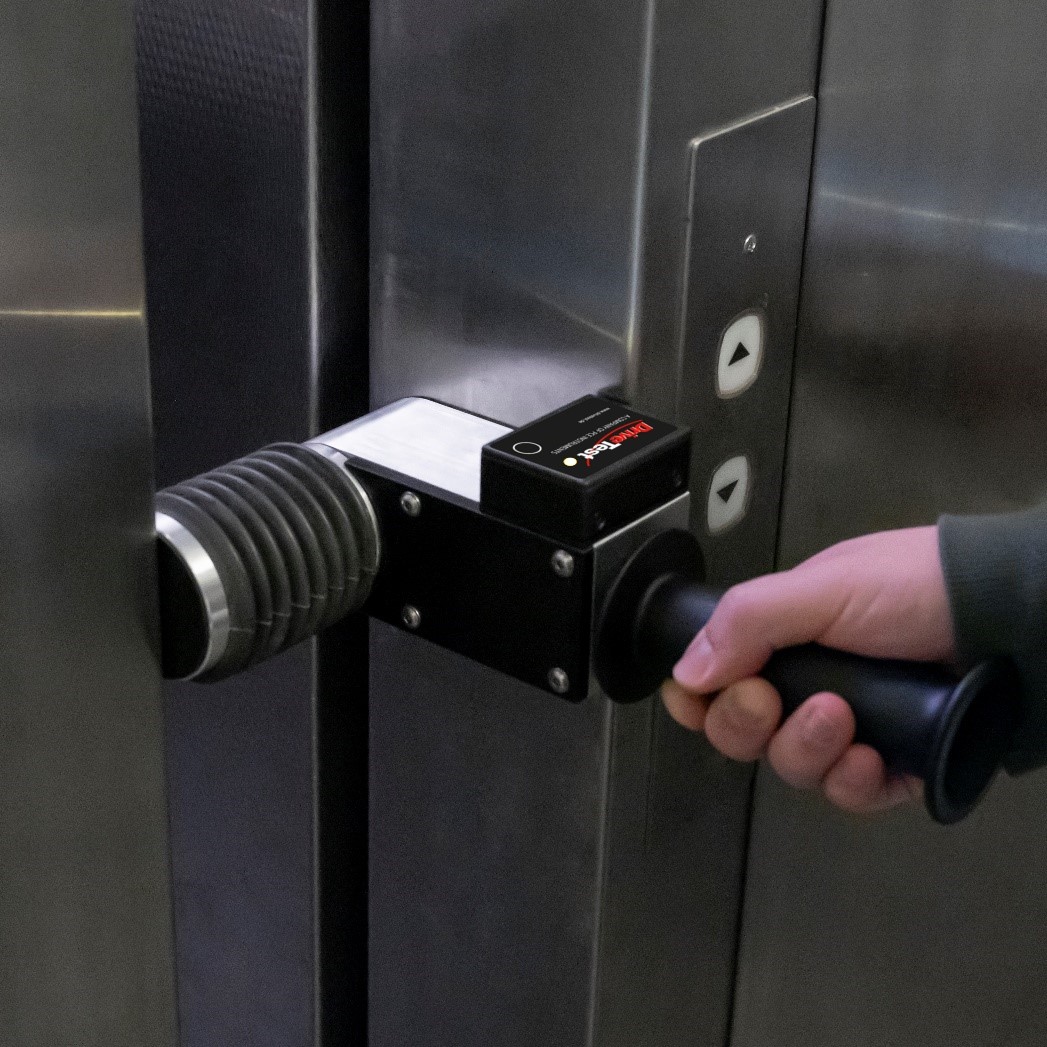

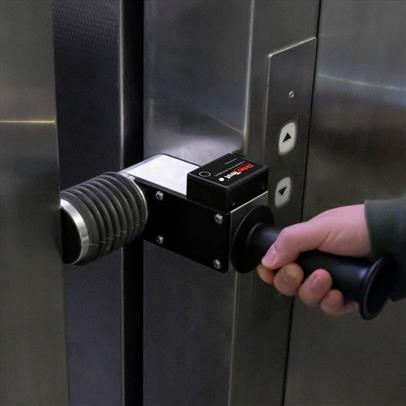

The FM 300 BT from Drive Test is a wireless, electronic closing force gauge for automatic elevator doors and machine guards.

With theFM 300 BT, Drive Test delivers a further development of the tried-and-tested FM 300 measuring device. It combines the well-known rugged construction for years of use in harsh environments and sustained precision with the flexibility of a wireless application and an easy-to-use app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Measurement Setup:

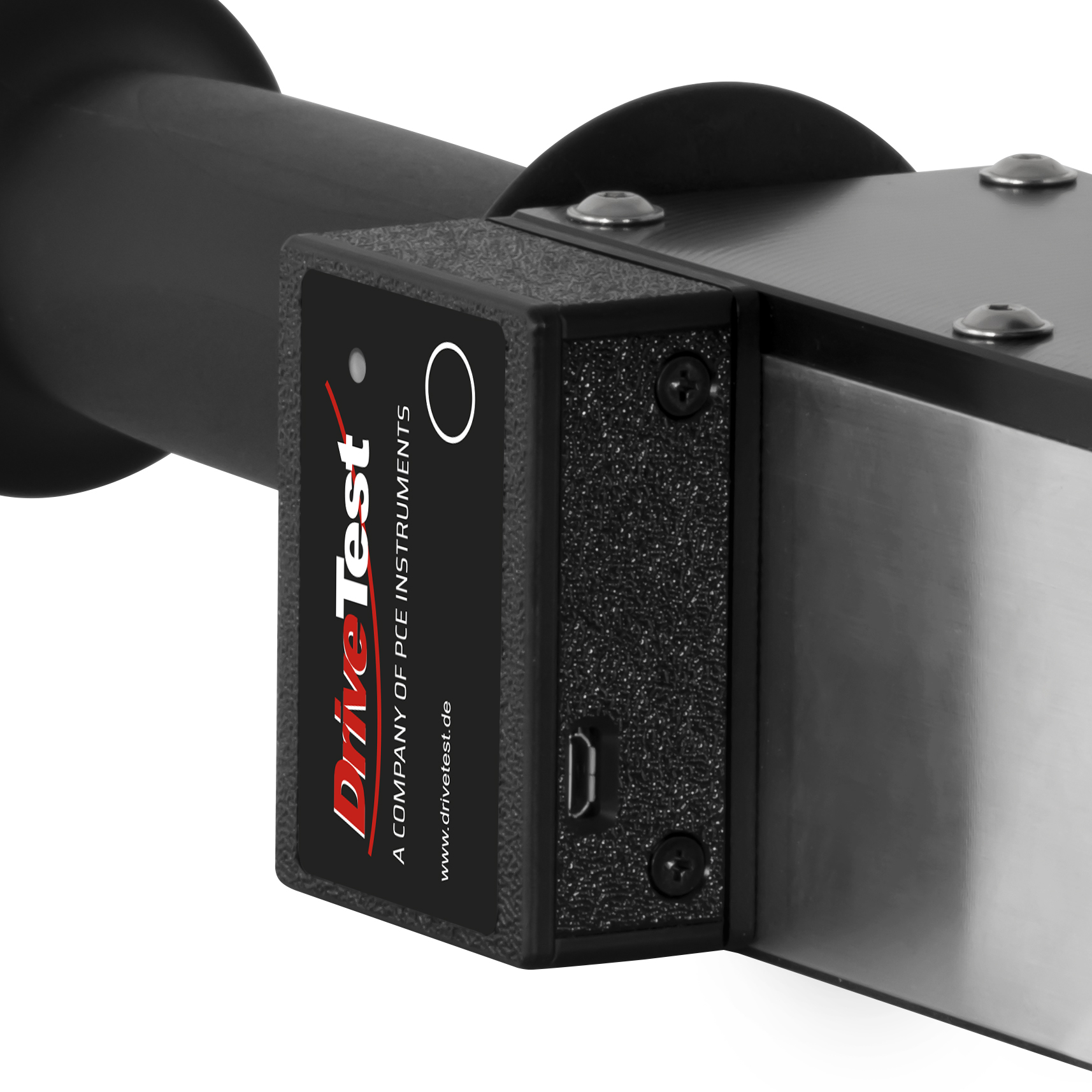

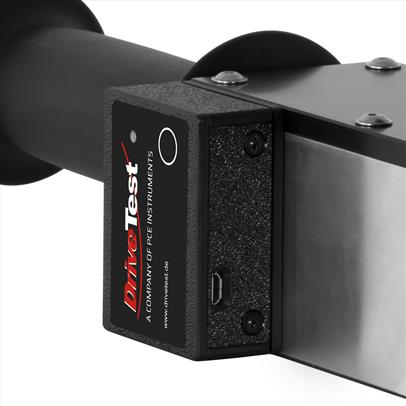

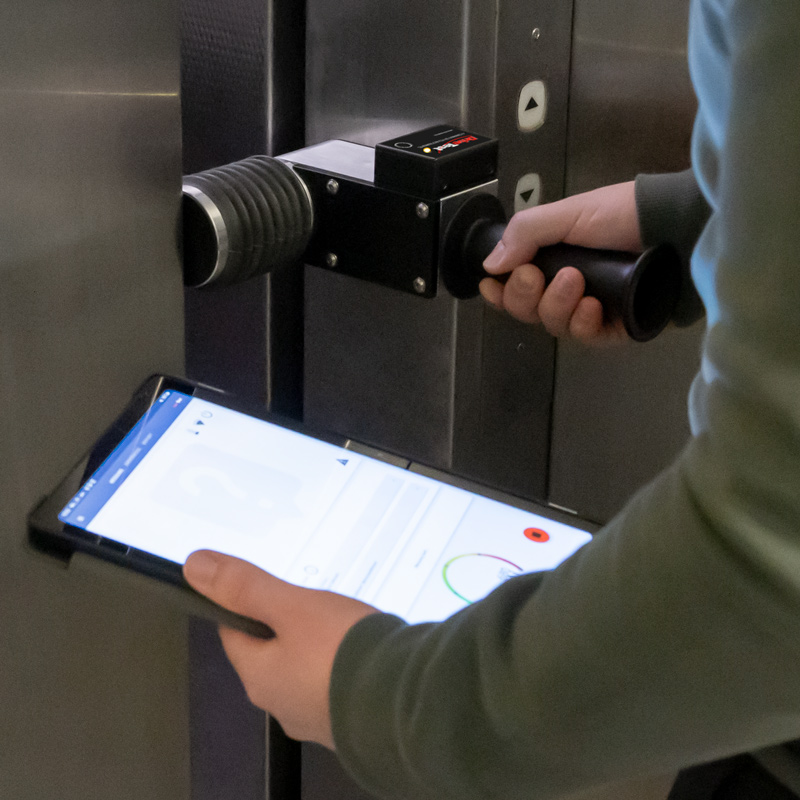

The FM 300 BT measuring system is ready for use in no time. After the measuring device is connected to the app via Bluetooth, the measurement can be started according to a selected standard. The app guides the user through the measurement process based on the specifications of the selected standard. The measurement reports are generated automatically and can be immediately saved and shared via known interfaces. In addition, the app stores the measured locking systems in a database. This makes it easier to find them again and periodic measurements of the same test specimen are combined. The assignment is done by a scanner for QR and barcodes integrated in the app.

Specification:

  • Measuring range: 0-750 N
  • Accuracy: +/- 3 N or 3 % of the measured value
  • Stiffness: 25 N/mm
  • Gap width: 145-510 mm
  • Diameter: 58 mm
  • Measuring principle: Strain gauge transducers
  • Dimensions: 280 x 145 x 82 mm
  • Weight: 1.2 kg

Software:

  • Force Meter – user-friendly app with automatic policy and standards updates, downloadable from your App Store
  • Time savings – immediate feedback on the measurement result including simple report generation
  • Paperless office – reduces paper and associated costs and protects the environment
  • Individually usable – integration of the customer's signature possible
  • PinchPilot – proven PC software also available

Technology:

  • Support of relevant standards – EN 81–1, EN 81–2, EN 81–20:2014, EN 81–50:2015, EN 14120 (mapped in software)
  • Precise measurements – thanks to friction-free guidance and platform load cell
  • Robust design – housing made of high-strength material for long service life in tough use
  • Wireless – no more annoying cables
  • Metering point identification – via QR and barcodes (integrated solution)

Scope of Delivery:

  • Wireless Meter
  • App Force Meter available for download
  • Software PinchPilot (USB stick)
  • PC connection cable (USB)
  • Manual

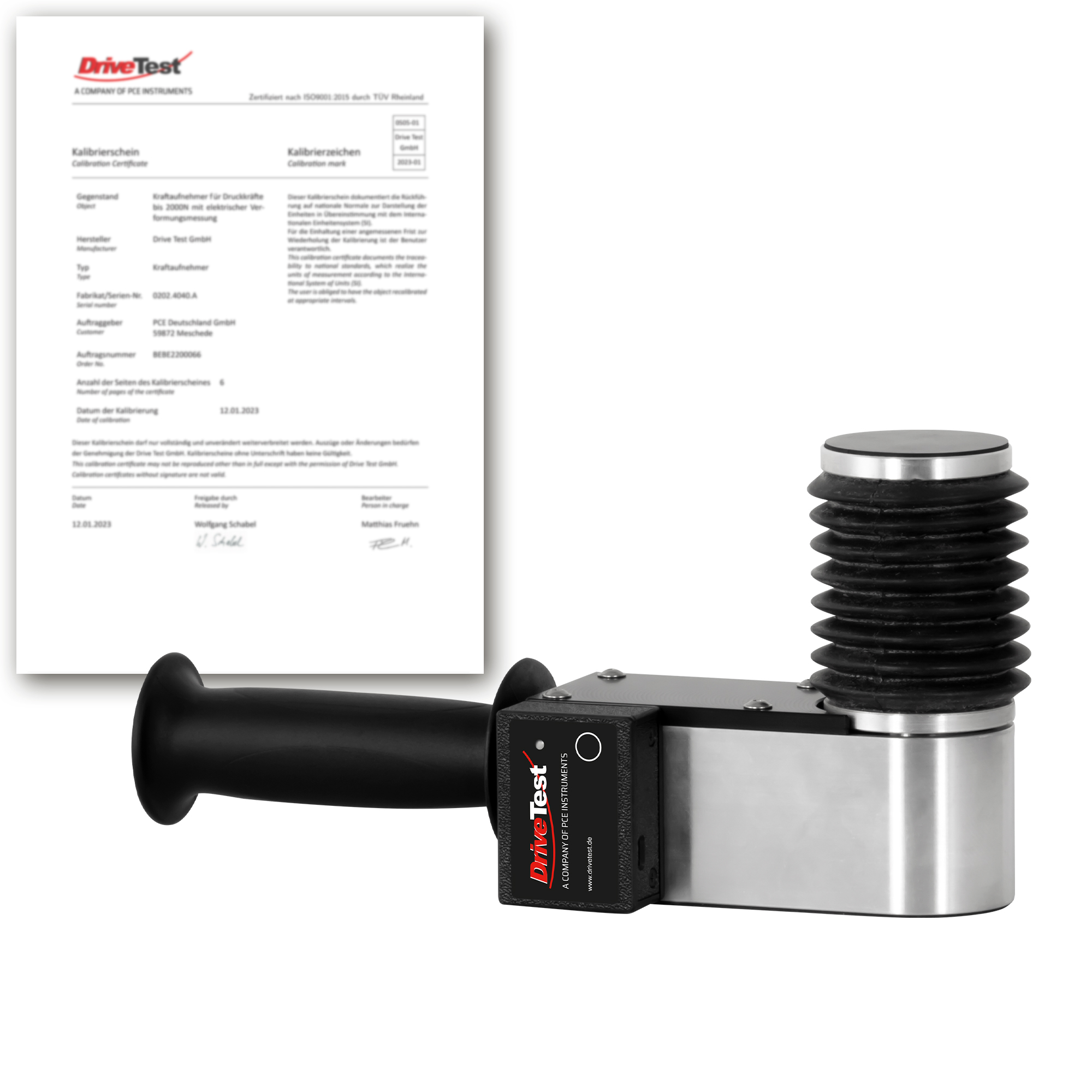

  • Calibration certificate

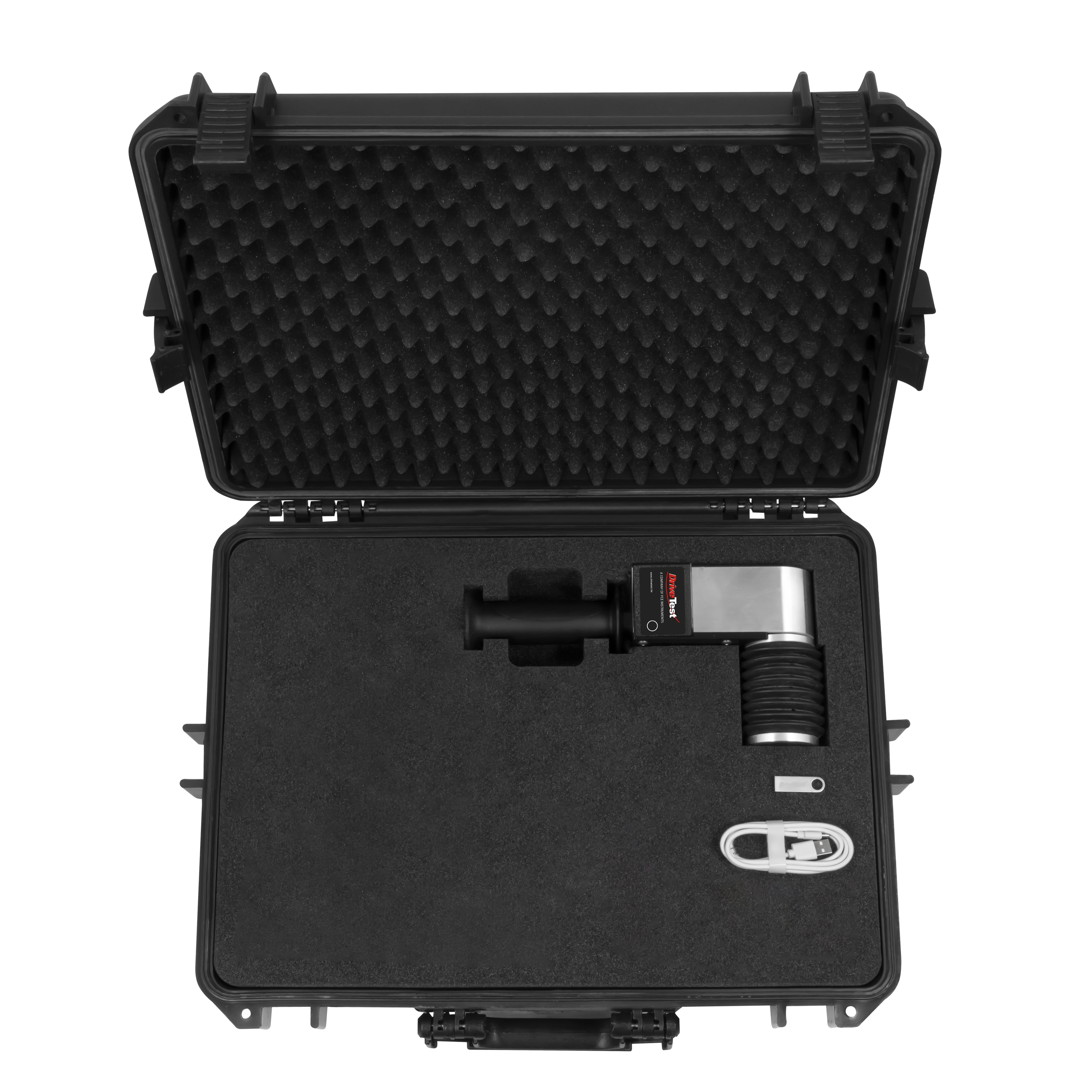

  • Transport case with foam insert

Optional scope of delivery:
Extension set consisting of 3 parts to achieve an opening width of up to 51 cm
