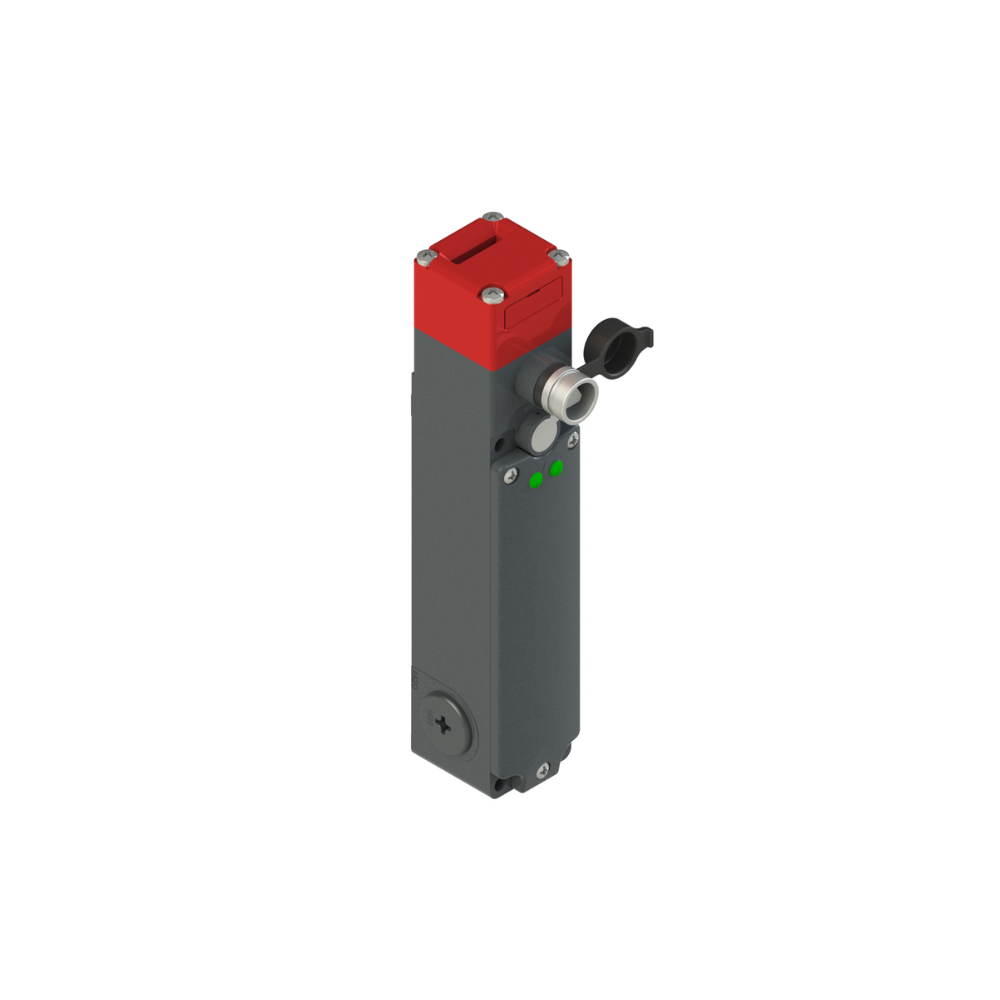

Safety Switch for Lift Door Locking

Product Description

Safety Switch for Lift Door Locking

24 VAC/DC without actuator.

IP67 according to EN 60529 with cable gland having equal or higher protection degree.

2NC moved by actuator and 1NO+1NC moved by solenoid.

D working method, locked actuator with de-energized solenoid.

Metal housing, three M20x1,5 cable entries.

Rotating head with lock auxiliary release device.

2 green LED switched-on by the solenoid power supply.

Key release with triangular lock and spring return.

Positive opening.

• FG60DD5D0A-V70 Manual
