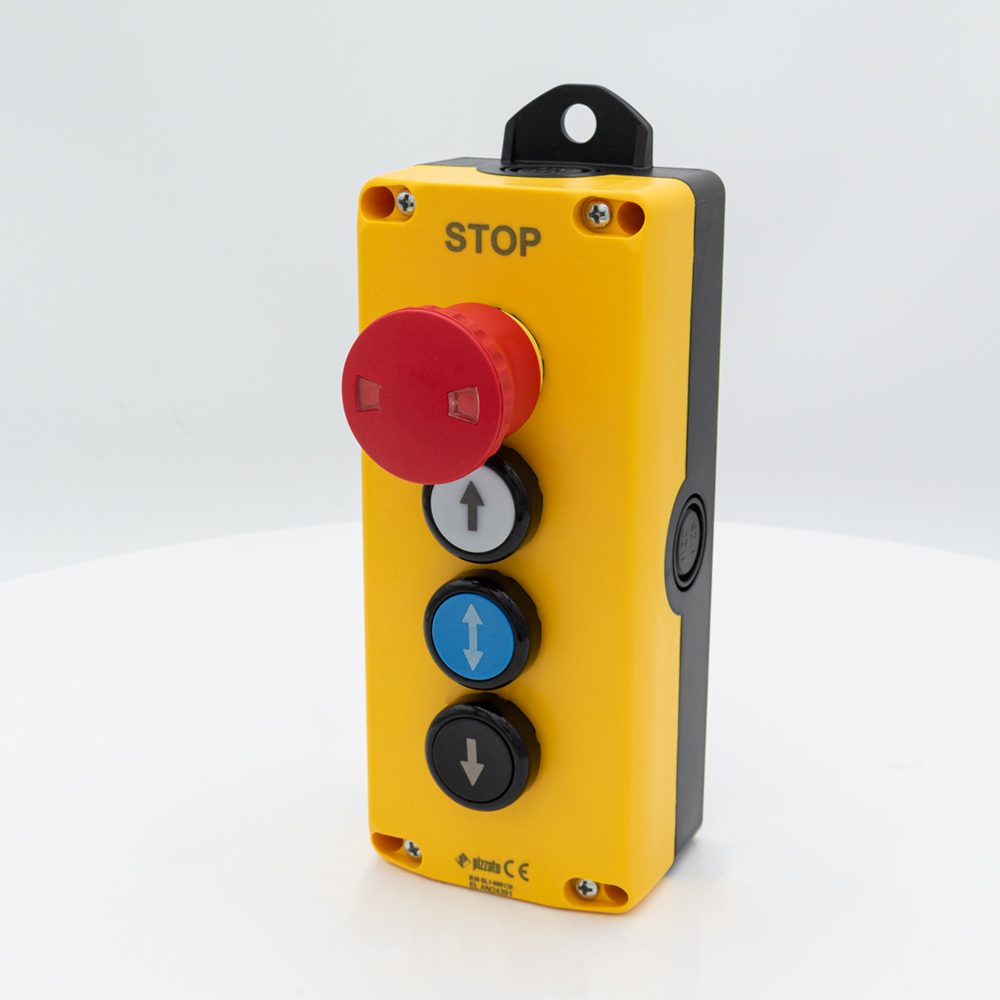

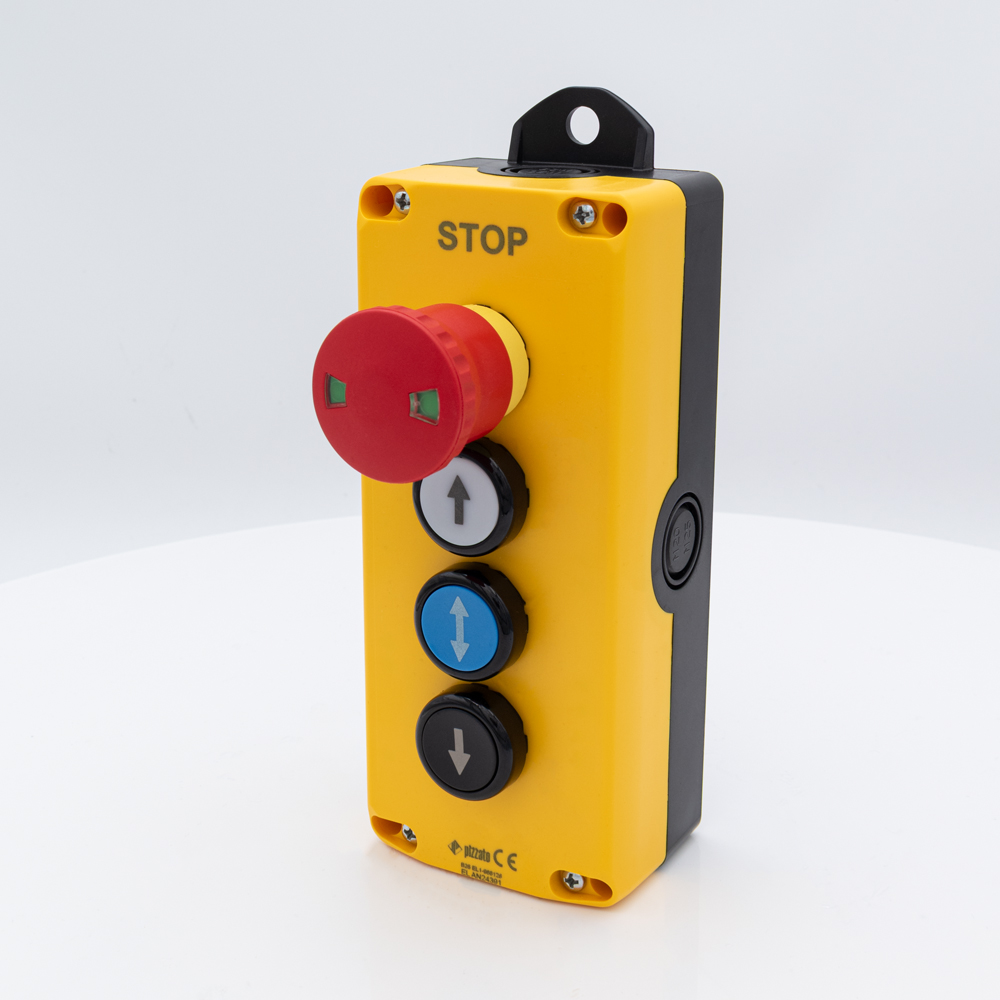

Pizzato Replacement Lift Control Station with Flag Indicated Stop Switch

Product Description

Pizzato Replacement Lift Control Station with Flag Indicated Stop Switch

Lift control unit with base hook and 6 cable entry points:

4 x 20-25mm entries (1 located on each side).

2x 20mm entries (2 located on the base).

Shock proof, self extinguishing, housing with technopolymer cover.

Mounting measurements' are displayed on the base of the unit for ease of installation

Protection to EN 60529
IP54 - Rated
​Captive screws

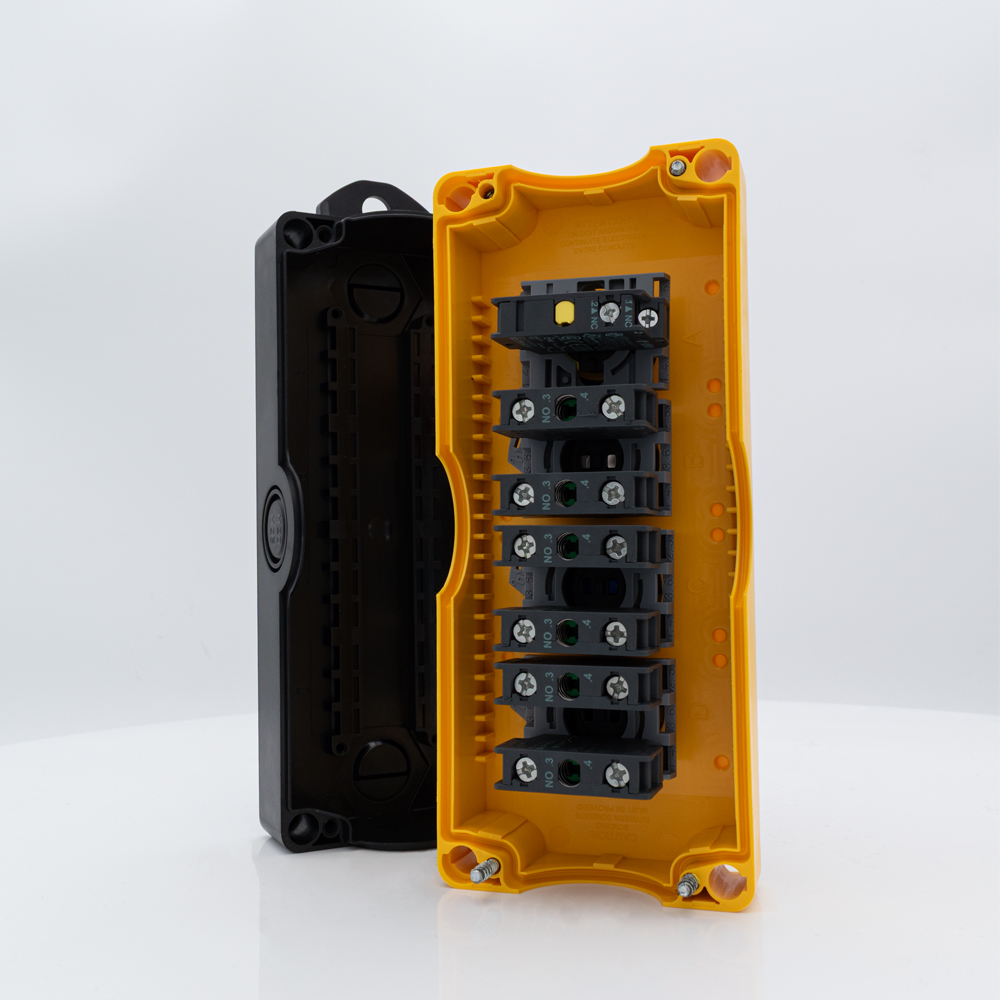

Composition

1 Stop Switch - Self Monitored Contact

1 pushbutton UP - 2NO

1 pushbutton DUAL Up/Down - 2NO

1 pushbutton DOWN - 2NO

Approximate Dimensions
​Box Measurements Only: 80mm Wide x 186mm High x 55mm Deep
Overall Measurements (including hook & Stop button): 80mm Wide x 210mm High x 102mm Deep

​

Self adhesive magnetic bases, contacts and replacement pushbuttons available.

Please contact us via email modularity for custom builds
