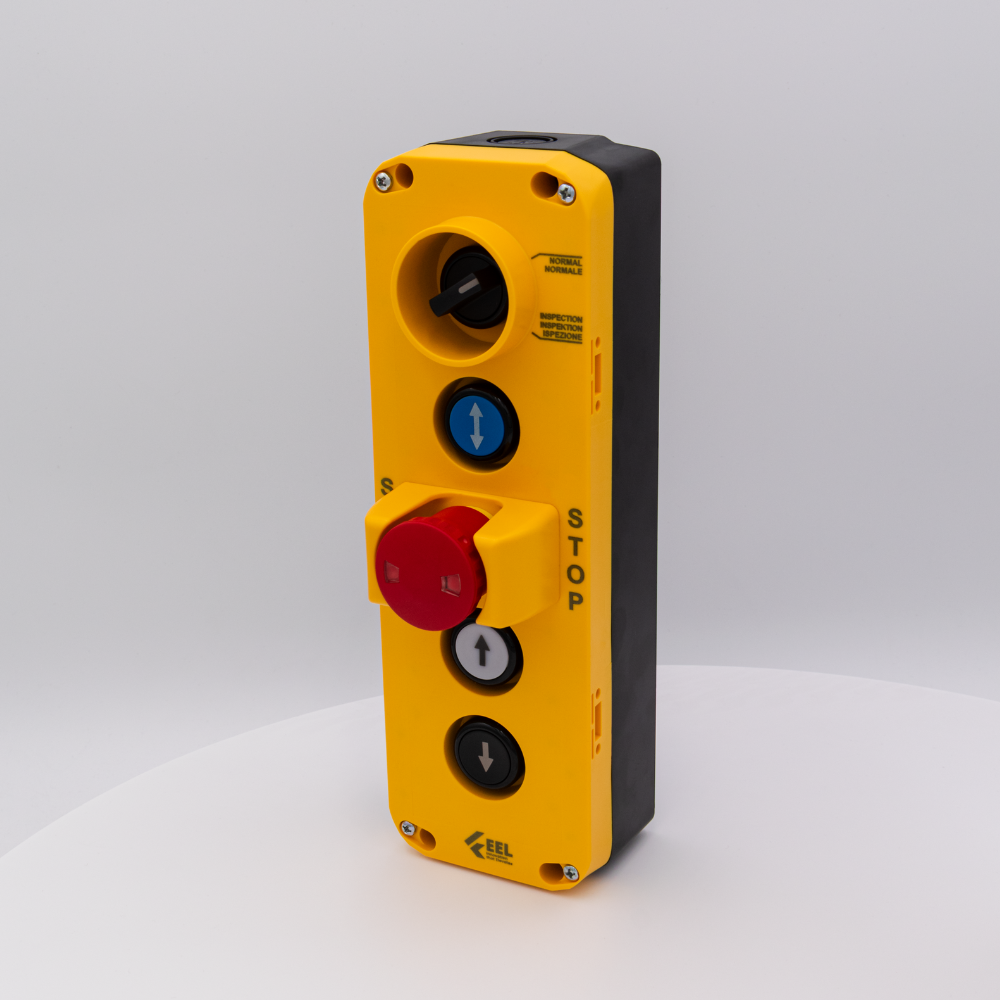

Car Top Control Station with Test Switch, up, down, Dual & Flag Indicated Stop Button

Product Description

Car Top Control Station with Test Switch, up, down, Dual & Flag Indicated Stop Button

Lift control unit with wall storage bracket and 4 cable entry points:

2 x 20-25mm entries (1 located on top and 1 located on bottom).

2x 20-25mm entries (2 located on the base).

Shock proof, self extinguishing, housing with technopolymer cover.

Mounting measurements' are displayed on the base of the unit for ease of installation

Protection to EN 60529
IP54 - Rated
​Captive screws

Composition:

1 Normal/Inspection Switch - 3NO+3NC Dual Contacts

1 pushbutton DUAL Up/Down - 1NO

1 emergency pushbutton Ø 40 - 1 Self Monitored NC

1 pushbutton UP - 2NO

1 pushbutton DOWN - 2NO

Approximate Dimensions
​Box Measurements Only: 90mm Wide x 280mm High x 62mm Deep
Overall Measurements (Stop button): 90mm Wide x 280mm High x 108mm Deep

Replacements components available in the Relate Products Tab.
