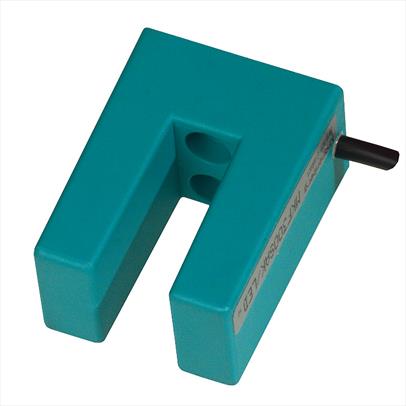

Magnet Switch MSK

Product Code: MSK-S

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

The MSK Magnetic Switch is equipped with a reed contact that switches via a sheet steel that enters into the slot. An additional permanent magnet is not necessary. The contact surrounded by protective gas reliably reports the position of moving parts. The switching status can be displayed with LEDs. A bistable version is not intended.


  • Slot magnet switch with intergrated magnet
  • 2m connection cable
  • Actuation is made by ferromagnetic steel sheet
  • Quiet operation
  • High contact safety because of reed contact in protective gas atmosphere

Technical Data:

Contact Material: Iron / Nickel with Rhodium
Connection: 2m Connection Cable, 2 x 0.5mm resp. 3 x 0.34mm
Level of Protection: IP67
Ambient Air Temperature: -25°C up to +80°C
Weight : 120g
Switching Performance Max: 40VA / W
Switching Voltage Max (AC/DC): 230V
Switching Current Max: 0.8A
Switch-on Time: 2ms
Drop-out Time: 0.1ms
Switching Performance Max: 100Hz
