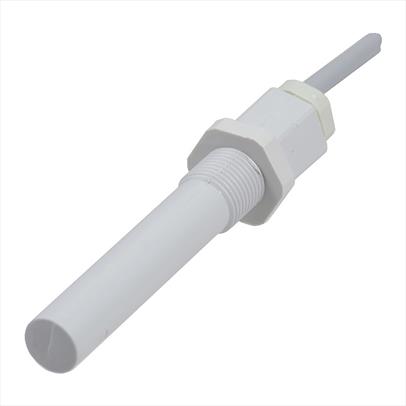

Magnet Switch MRK

Product Code: MRK-BI

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

The MRK Magnetic Switch, equipped with a reed contact, is switched by the approach of a permanent magnet. The contact surrounded by protective gas reliably reports the position of moving parts. In a bistable version, it has a stay-put latching effect and remains in the switching position until a magnet passes in the opposite direction. The type MRK in the classic round construction form can be actuated at the end and at the longitudinal side.


  • Round version with 2x M16-threaded nuts for fixation
  • 2m connection cable
  • High contact safety due to reed contact in protective gas atmosphere
  • Quiet operation
  • Bistable version available (stay-put)

Technical Data:

Contact Material: Iron / Nickel with Rhodium
Connection: 2m Connection Cable, 2 x 0.75mm resp. 3 x 0.75mm²
Level of Protection: IP67
Ambient Air Temperature: -25°C up to +70°C
Weight : 115g
MRK: - BI , -BIU , -S , -O
Switching Performance Max: 80VA / W , 60VA / W , 120VA / W , 60VA / W
Switching Voltage Max (AC/DC): 230V , 230V , 230V , 230V
Switching Current Max: 0.8A , 1A , 3A , 1A
Switch-on Time: 3.5ms , 4ms , 3.5ms , 4ms
Drop-out Time: 0.2ms , 0.1ms , 0.2ms , 0.15ms
Switching Performance Max: 100Hz , 100Hz , 100Hz , 100Hz
