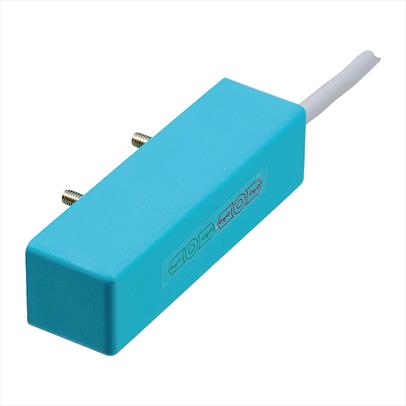

Magnet Switch MBK

Product Code: MBK-BI

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

The MBK Magnetic Switch, equipped with a reed contact, is switched by the approach of a permanent magnet. The contact surrounded by protective gas reliably reports the position of moving parts. In a bistable version, it has a stay-put latching effect and remains in the switching position until a magnet passes in the opposite direction. The block-shaped type MBK with plug connection can be installed without space side by side without any mutual interference.


  • M4 - threaded pin for fixation
  • 2m connection cable
  • High contact safety due to reed contact in protective gas atmosphere
  • Quiet operation
  • Version with LED available
  • Bistable version available (stay-put)
  • Attachable because of magnetic shielding

Technical Data:

Contact Material: Iron / Nickel with Rhodium
Connection: 2m Connection Cable, 2 x 0.75mm resp. 3 x 0.5mm
Level of Protection: IP40
Ambient Air Temperature: -25°C up to +80°C
Weight : 60g
Switching Performance Max: 120VA / W , 80VA / W
Switching Voltage Max (AC/DC): 230V , 230V
Switching Current Max: 2.5 A
Switch-on Time: 3.5ms
Drop-out Time: 0.2ms
Switching Performance Max: 100Hz
