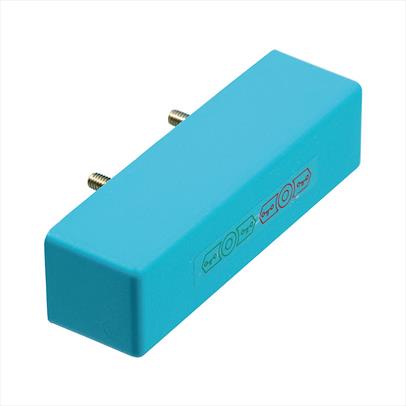

Magnet Switch MBF

Product Code: MBF-BI

Members - please login for prices

How to use Order Form?

Product Description

Technical Information:

The MBF Magnetic Switch, equipped with a reed contact, is switched by the approach of a permanent magnet. The contact surrounded by protective gas reliably reports the position of moving parts. In a bistable version, it has a stay-put latching effect and remains in the switching position until a magnet passes in the opposite direction. The block-shaped type MBF with flat plug connection can be installed without space side by side without any mutual interference.


  • Connection via flat plug 4.8mm
  • M4 - threaded pin for fixation
  • High contact safety due to reed contact in protective gas atmosphere
  • Quiet operation
  • Version with LED available
  • Bistable version available (stay-put)
  • Attachable because of magnetic shielding

Technical Data:

Contact Material: Iron / Nickel with Rhodium
Connection: flat plug, size 4.8 x 0.5 mm
Level of Protection: IP00
Ambient Air Temperature: -25 °C up to +80 °C
Weight: 60g
Switching Performance Max: 120 VA / W , 80 VA / W
Switching Voltage Max (AC/DC): 230V , 230 V
Switching Current Max: 2.5A , 0.8A
Switch-on Time: 3.5ms , 3.5ms,
Drop-out Time: 0.2 ms, 0.2 ms,
Switching Performance Max: 100Hz , 100Hz, Tec
