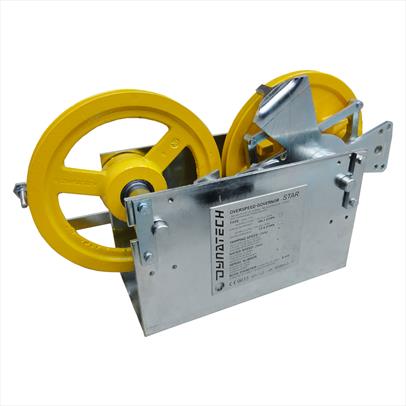

DYNATECH - Star Overspeed Governor
Product Code: STAR-0.50M/S
Product Description
TECHNICAL INFORMATION:
NO TENSION WEIGHT SYSTEM REQUIRED. IDEAL FOR RESTRICTED LIFT SHAFTS. NO HOLES NEEDED WITHIN THE MACHINE ROOM FLOOR. CAN BE MOUNTED ON THE LIFT CAR TOP OR BELOW. BI-DIRECTIONAL OVERSPEED GOVERNOR. CAN BE FITTED TO MOST SAFETY GEAR SYSTEMS. CERTIFIED ATISAE TO STANDARD 95/16/CE EN81.
Pulley Diameter: 200mm.
Rope Diameter: 6mm.
Overspeed contact included.
Remote tripping mechanism by electrical acting.
Rope out protection included.
Rope slackening contacts included.
Protection plate (optional).
Hardened groove (optional).
Non stock item - Lead time estimated 6 weeks.
Star governors are available in Right or Left-handed, depending on your installation method. Please see the attached diagram. We will require this information before processing your order.
On the order form in the additional information box please state if you require a left or right hand version.
See Picture 2:
(1) - Guide Pulley.
(2) - Rope.
(3) - Governor.
(4) - Centrifugal system.
(5) - Locking device.
(6) - Auxiliary system. NOT SUPPLIED
(7) - Driving bar.
(8) - Safety gear.
