Pizzato 3 Pin Power Socket

Product Description

Pizzato 3 Pin Power Socket

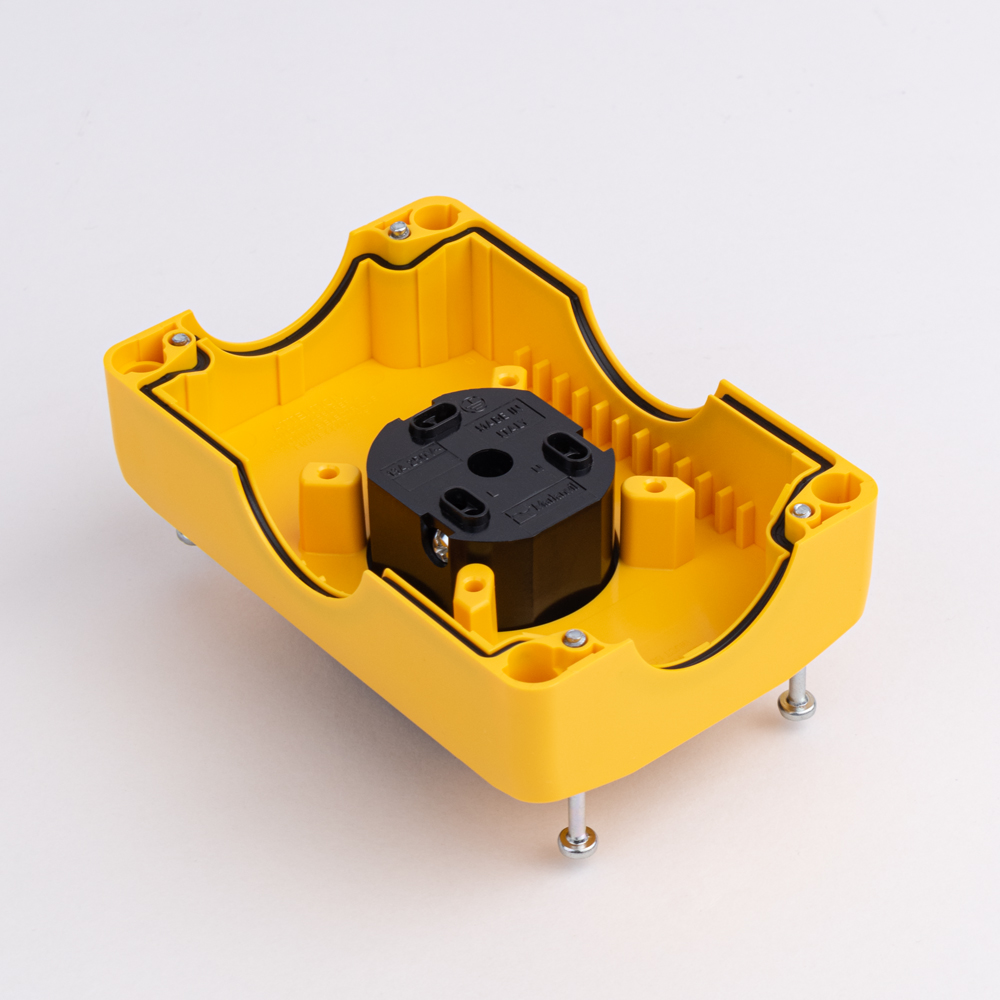

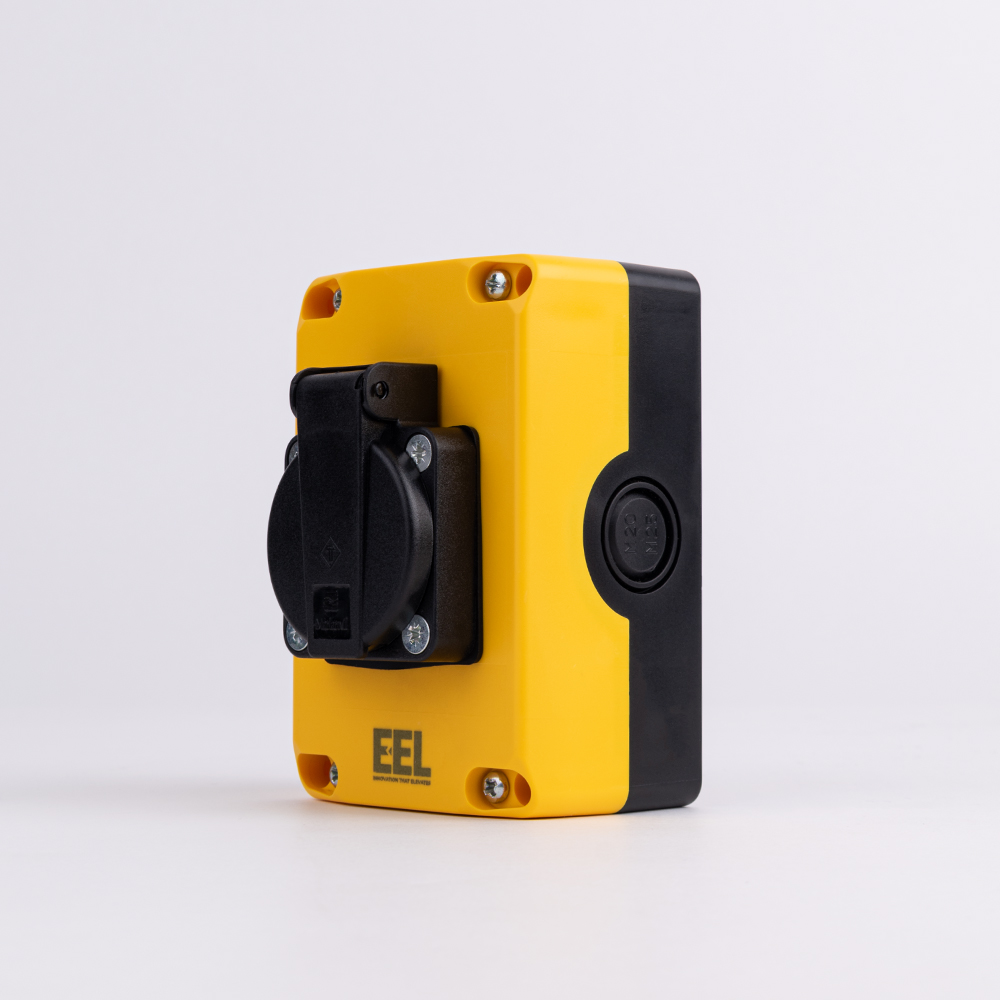

3 Pin power socket with spring loaded cap and green halo and 6 cable entry points:

2 x 20-25mm entries (1 located on top and 1 located on bottom).

2 x 20-25mm entries (1 located on each side).

2x 20mm entries (2 located on the base).

Protection to EN 60529
IP54 - Rated
​Captive screws

Built in safety shutters to keep the live and neutral contacts covered until the earth pin is inserted, providing an added level of protection against accidental contact.

​Shock proof, self extinguishing, housing with technopolymer cover.

Mounting measurements' are displayed on the base of the unit for ease of installation

Approximate Dimensions
​Box Measurements Only: 80mm Wide x 120mm High x 55mm Deep
Overall Measurements (including Socket and cap): 80mm Wide x 120mm High x 76mm Deep
