Oil Coolers

Product Code: SIL25

Members - please login for prices

How to use Order Form?

Product Description

Oil Coolers

TECHNICAL INFORMATION:

We are pleased to offer a brand new range of Oil / Air coolers. Integrating compact design, high cooling and low noise. For full technical details please click on the PDF links below.

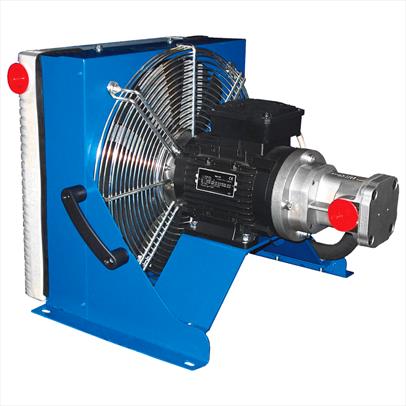

Silent EVO2 Series

The Silent EVO 2 Series heat exchangers are designed to connect directly to the hydraulic reservoir. These offline air/oil coolers offer a reduced noise level while utilizing a pump activated by an electric motor to automatically take the oil into circulation through the cooler and then return the oil back into the hydraulic circuit. This is a high efficiency heat exchanger cooling system.

TECHNICAL INFORMATION:
Lift Size up to 1000KG
Product Code: SIL25
SIL25 - SE2 25 SC 400 B02 (7.6 kW)

Lift Size from 1000KG – 2000KG
Product Code: SIL35
SIL35 - SE2 35 SC 400 B02 (11.9 kW)

Lift Size from 2000KG – 3000KG
Product Code: SIL45
SIL45 - SE2 45 SC 400 B02 (17.7 Kw)

All our oil coolers are supplied with the following items: -

  • 1 x Thermostat kit.
  • 6 Meters of R2T Hose to suit motor inlet connection with BSP Fem Connections each end to suit cooler
  • 6 Meters of R2T Hose to suit pump outlet connection with BSP Fem Connections each end to suit.
  • Pump Suction Adaptor BSP Male/Male.
  • Matrix Return Adaptor BSP Male/Male

These units are designed to fit adjacent to the oil tank (on the same level). They are not suitable for mounting above or below.

These items are purchased on an individual basis on your behalf so please check the full manufacturers specification to ensure their suitability. Additionally all hoses and pipework are cut specially to your lengths. Because of this we are not able to accept returned items other than for faults covered by the manufacturer’s warranty.

N.B: The lift weights shown below are for general guidance only.
