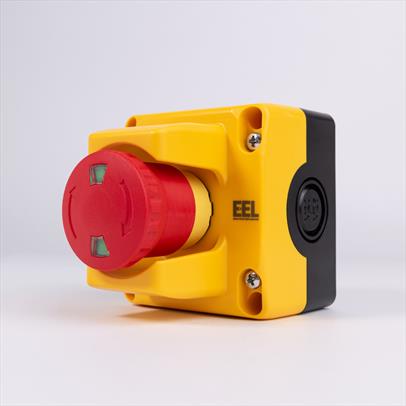

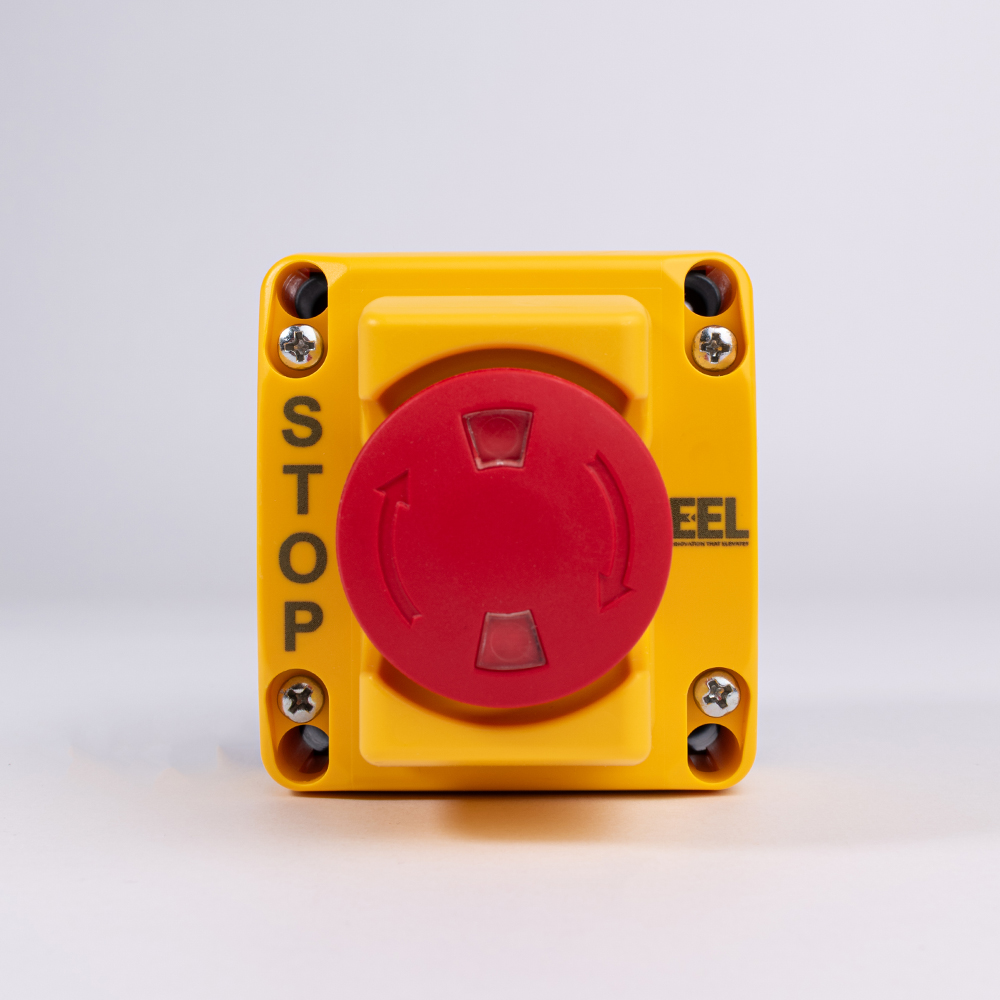

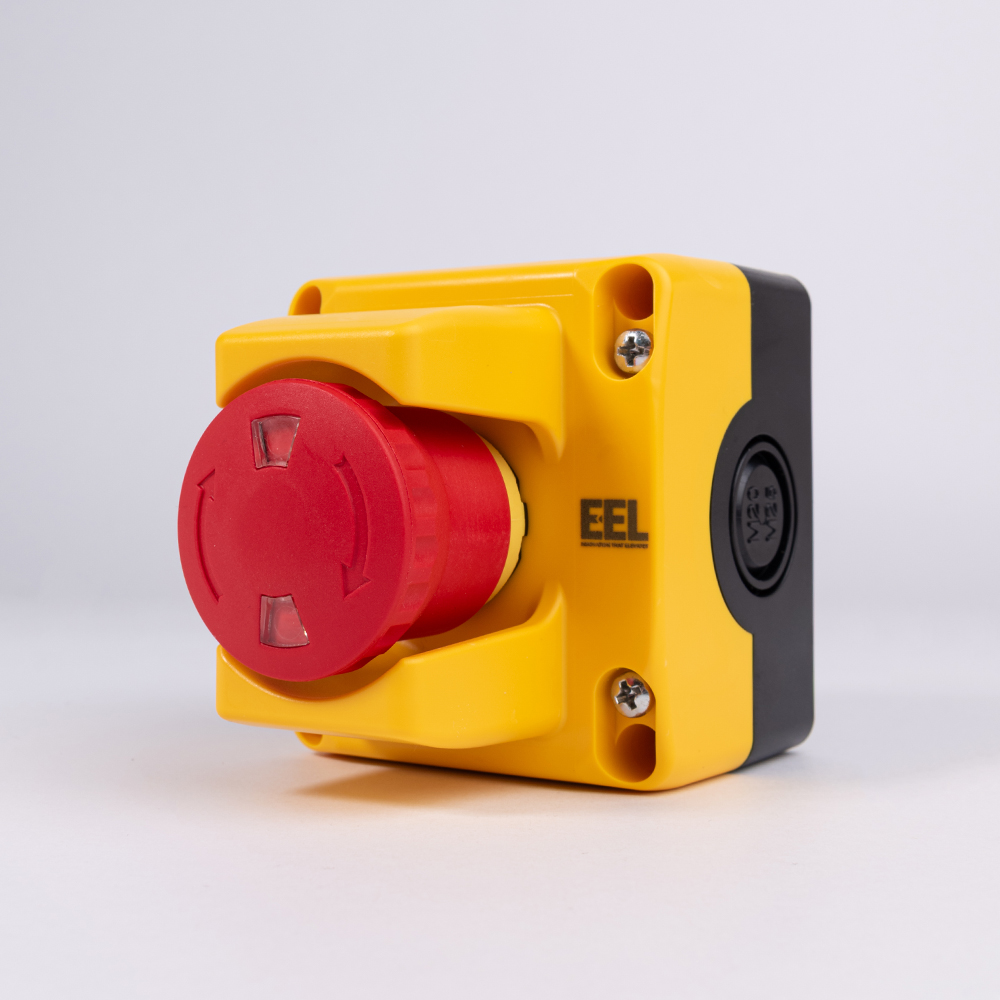

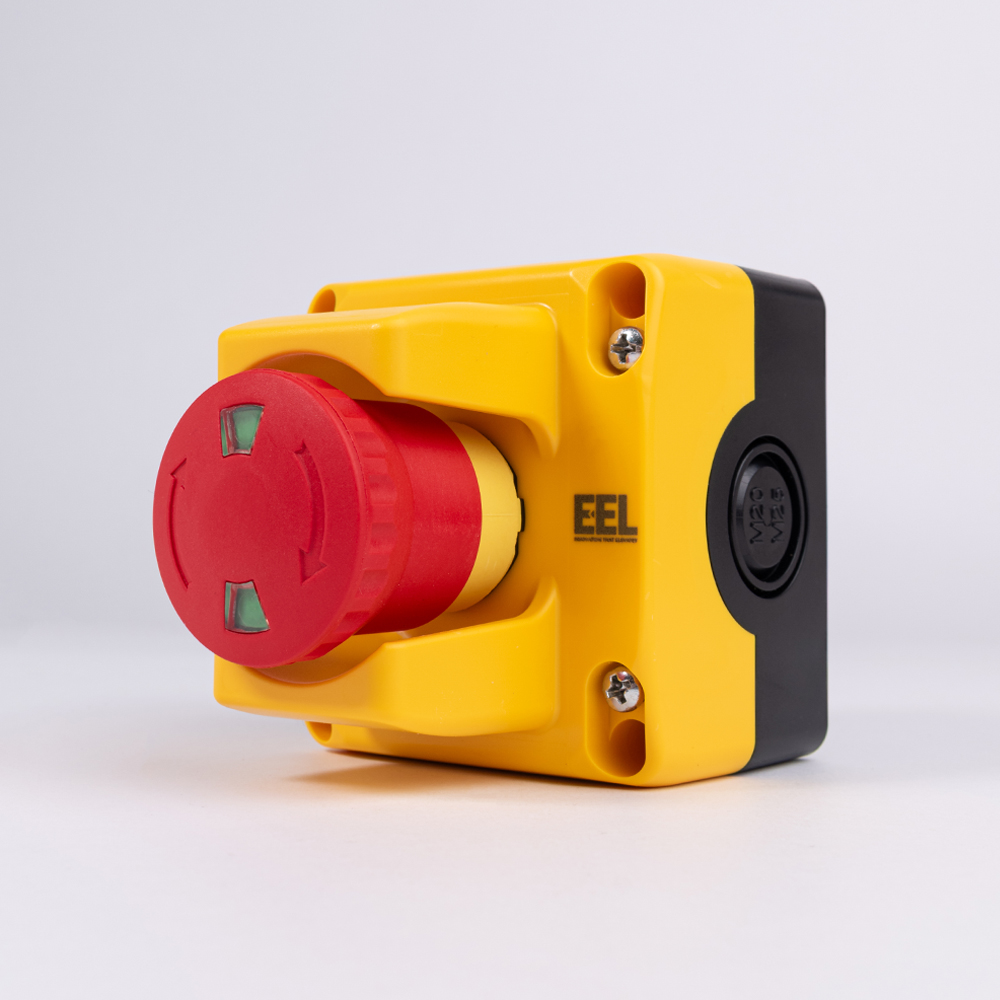

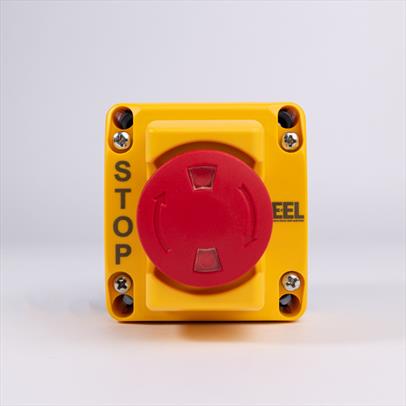

Guarded, Turn to Release & Flag Indicated Stop Switch
Product Code: ELAN21530
Product Description
Guarded, Turn to Release & Flag Indicated Stop Switch
Guarded stop switch and 6 cable entry points:
1x Self Monitored Contact
2 x 20mm entries (1 located on top and 1 located on bottom).
2 x 20-25mmmm entries (1 located on each side).
2x 16mm entries (2 located on the base).
Shock proof, self extinguishing, housing with technopolymer cover.
Mounting measurements' are displayed on the base of the unit for ease of installation
Protection to EN 60529
IP54 - Rated
Captive screws
Approximate Dimensions
Box Measurements Only: 72mm Wide x 80mm High x 56mm Deep
Overall Measurements (including Stop button & gaurd): 72mm Wide x 80mm High x 96mm Deep
Extra contacts Available.
ELAN21530
17.39
