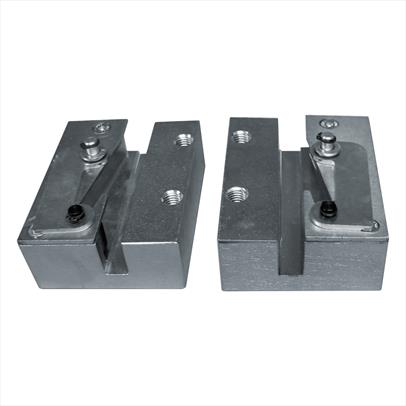

Instantaneous Safety Gear - IN-3000 Down Only

Product Description

Acting: DOWNWARDS
Guide rail type: COLD DRAWN OR MACHINED OILED OR DRY

Admissible guide rail thickness: 8, 9 and 10 mm

IN-3000

For tripping speed of 1 m/s:
P+Q max. 8 mm guide Cold drawn guide rail = 2480 kg
P+Q max. 9 mm guide Cold drawn guide rail = 2837 kg
P+Q max. 9 mm guide Machined guide rail = 1855 kg

IN-3000 G10

For tripping speed of 1 m/s:
P+Q max. 10 mm Cold drawn guide rail = 3364 kg

T1 Assembly adjustable between 600mm to 4000mm. Suitable for Lift Cars

Distance between guides: from 600 to 4000 mm
Safety switch

Used with the following products:
IN - 3000
IN - 3000 G10
IN - 6000

T1 CW IN Assembly adjustable between 600mm to 4000mm. Suitable for Lift Counterweights

Distance between guides: from 600 to 4000 mm
Safety switch

Installed as a counterbalance in the following instantaneous safety gear:
IN - 3000
IN - 3000 G10
IN - 6000

P = Contract Load
Q = Car Weight

To order the correct safety gear, we require the contract load plus the car weight.

THE CAR WEIGHT MUST BE ACCURATE.

A complete assembly consists of the following items.

· 1 x Set of Safety Gear Blocks
· 1 x Appropriate T Bar Assembly
· 1 x Safety Gear Switch.

To order the correct safety gear you will need to know the following
· Contract Load = P
· Car Weight. = Q
· DBG Measurement (Distance Between Guides)
· Guide Rail Thickness 8-10mm
When ordering the T1 or T1-CW-IN Assembly, please confirm your Distance Between Guides
