ASG-65-UD - Progressive Bi Directional Safety Gear

Product Code: DYN/ASG-65UD

Members - please login for prices

How to use Order Form?

Product Description

Acting: UPWARDS &DOWNWARDS
Guide rail type: COLD DRAWN & OILED

Admissible guide rail thickness: 8mm
According to the standards: EN 81-20 and EN 81-50.

Minimum gripping width: 20 mm
Admissible guide rail thickness: 8 mm(T65A)
Maximum tripping speed: 2,33 m/s

(P+Q) Maximum permitted:
Min. P+Q = 790 Kg (-7,5%)
Max. P+Q = 2214 Kg (+7,5%)

P+Q Range Available: 790KG, 902KG, 997KG, 1114KG, 1229KG, 1326KG, 1449KG, 1548KG, 1685KG, 1919KG, 2047KG, 2214KG

T25-UD or T25-UD-XL Assembly adjustable between 600mm to 4000mm.
Safety switch

Used with the following products:

ASG-65-UD
ASG-100-UD
ASG-120-UD
ASG-121-UD
ASG-221-UD

P = Contract Load
Q = Car Weight

To order the correct safety gear, we require the contract load plus the car weight.

THE CAR WEIGHT MUST BE ACCURATE.

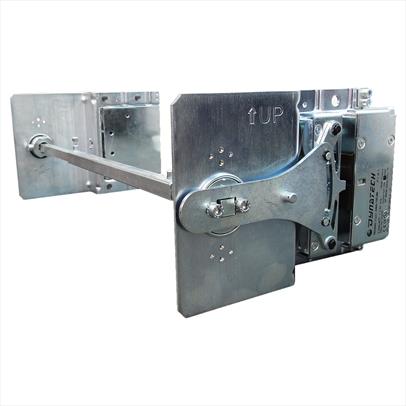

A complete assembly consists of the following items.

· 1 x Set of Safety Gear Blocks
· 1 x Appropriate T Bar Assembly
· 1 x Safety Gear Switch.

To order the correct safety gear you will need to know the following;
· Contract Load = P
· Car Weight. = Q
· DBG Measurement (Distance Between Guides)|
· Guide Rail Thickness 8mm(T65A)

When ordering the T25-UD Assembly, please confirm your Distance Between Guides. T25-UD-XL available on request.

Optional Extra: RENO SUPPORT SYSTEM.

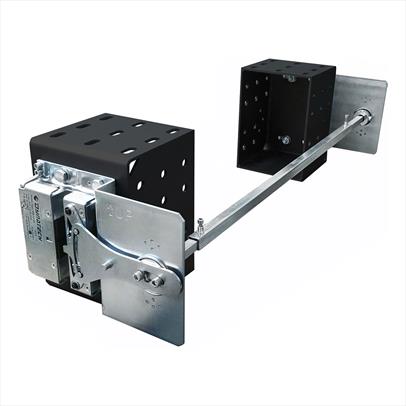

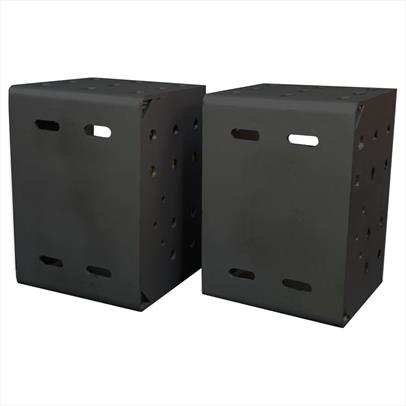

The RENO support system for new or existing (renewed) frames is formed by two braces that support all Dynatech progressive safety gear and their associated linkage. The installation of the most common slide or roller guide shoes sold commercially is also accepted. Suitable for the entire range of PR, PQ and ASG progressives, with their associated linkage T1, T2, T3, T25 and T25 UD For further details and prices please refer to product code RE

Important Note:

Our entire range of progressive safety gears may be installed in Tandem configuration. Tandem configuration consists of fitting two units of safety gears into the frame instead of the usual single one. This configuration allows doubling the range of the total mass (P+Q) that the safety gears may brake, and is valid for the entire range of interlocking rails in Dynatech’s driving bars. Call our sales team for more information.
