Lift Buffers Made of AUTAN HE - for Nominal Speeds up to 1.0m/s - EN81-20/50
Product Code: ART.300400L1
The Latest State-of-the-Art ACLA Safety Product
Lift Buffers made from AUTAN® HE certified as per EN81-20/50 & Lift Directive 2014/33/EU

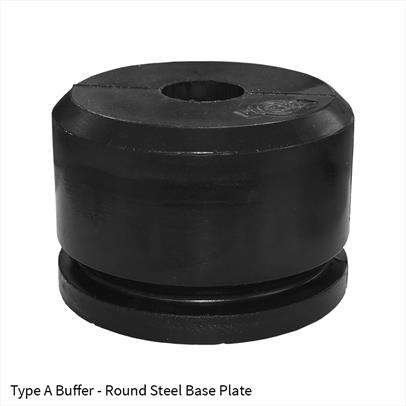

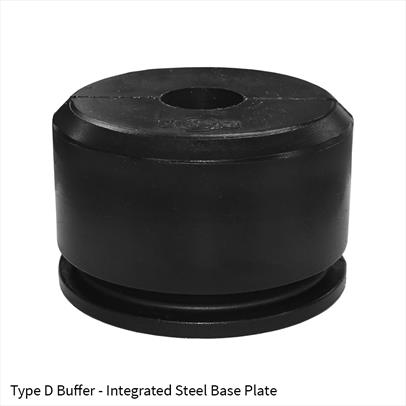

Available as type A, C, and D made from AUTAN® HE according to EN81-20/50 for nominal speeds up to 1.0m/s
We now stock an expanded range including Type A, C, & D
We ensure planning certainty for all your future lift projects based on the applicable standard EN81-20/50 and lift directive 2014/33/EU. All offered buffers are type-tested according to the current regulations.
Focusing on optimizing manufacturing technology ACLA Lift Buffers Made of AUTAN HE Series S offer extended application ranges as to min. and max. loads. All buffers of Series S comply with the important mounting height of 80 mm.
Maintenance 4.0 integrated
Important product data is digitally marked on each ACLA lift buffer of AUTAN HE.
The specification pdf file below contains all relevant technical information including the admissible application ranges.

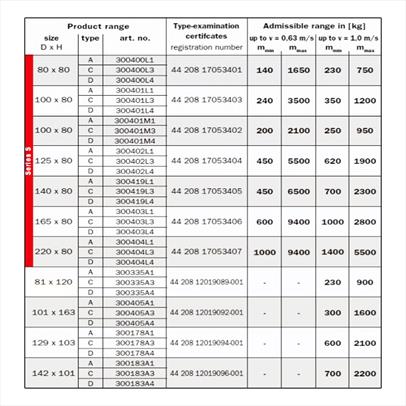

Buffer sizes and range of application according to EN81-20/50 at nominal speeds up to 1.00M/S
Type-examination certificates and declarations of conformity not available below can be downloaded from the website "www.acla-werke.de".
Please check the chart image above for a quick glance at the available sizes, permissible speeds, and minimum/maximum weights.
- ACLA Buffer Installation Manual
- ACLA EN 81-20/50 Drawings
- ACLA EN 81-20/50 Technical Specification Chart
- ACLA Expansion & Deflection Chart
- ACLA EN81 20 Buffer - Specification and Range of use
- EN/EU Declaration of Conformity - AUTAN HE AB Lift Buffer
- UKCA Declaration of Conformity - AUTAN HE AB Lift Buffer
- UKCA Type Examination Certificate 300400L
- UKCA Type Examination Certificate 300401L
- UKCA Type Examination Certificate 300402L
- UKCA Type Examination Certificate 300419L
- UKCA Type Examination Certificate 300403L
- UKCA Type Examination Certificate 300404L
- UKCA Type Examination Certificate 300405A
- UKCA Type Examination Certificate 300178A
- UKCA Type Examination Certificate 300183A
