Dynatech Compact Tension Weight - Spring Loaded - 200mm Pulley

Product Code: DYN/CTS/200

Members - please login for prices

How to use Order Form?

Product Description

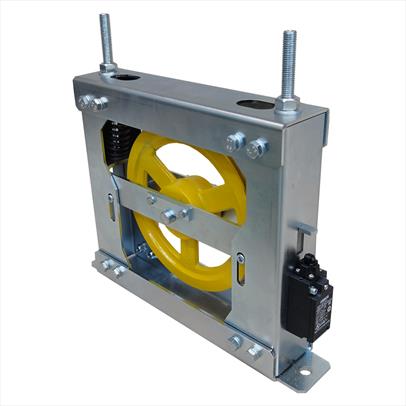

COMPACT 200 tension weight is a product designed to provide the tension required for the rope going through a standard overspeed governor’s groove. Unlike the usual tensioning pulleys, which use masses to generate tension, these masses have been removed from our COMPACT pulleys replacing them with springs.

This is a very compact design, with minimum dimensions, perfect to be used in installations with a reduced headroom and pit.

DYNATECH’s COMPACT tension weight is a product that is supplied pre-assembled. This allows the installer to save time on site.


  • Rope slackening contact.
  • Rope tensioner: That will make rope re-tensioning easier if required.
  • Cast pulley.
  • Rope out protection system
  • Rope Size: 6 – 6.5mm
  • 200mm pulley diameter

​Please refer to the attached pdf files for technical drawings and installation manuals.

Dynatech equipment is listed as a safety device. Therefore they can only be returned when ordered in error and with the express permission of Elevator Equipment. They must be returned within 5 working days and be in unopened box condition, undamaged and with all relevant manuals. A credit note cannot be issued if the above conditions are not met. There will be a restocking charge.
