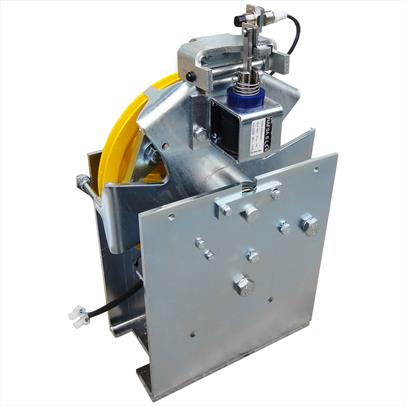

DYNATECH - A3 Vega Overspeed Governor - 200mm Pulley

Product Code: A3/VEGA-0.32

Members - please login for prices

How to use Order Form?

Product Description

Anticreep device by electrical acting: 24VDC + Inductive Sensor (Included)
When using the D-BOX electronic device with Anticreep system, COIL should be 24VDC
According to the standards: EN 81-1:1998+A3:2009and EN 81-2:1998+A3:2009.

Dynatech will only take responsibility for the correct functioning of their A3 governors if they are used in conjunction with the D-BOX. They cannot take responsibility if they have been paired with an existing controller manufacturers A3 set up

VEGA A3/PLUS with encoder is also available.

Tripping speed:

BI-DIRECTIONAL:Minimum: 0,7 m/s ; Maximum: 2,87 m/s

Pulley Diameter: 200 mm ;
Rope Diameter: 6 mm / 6,3 mm / 6,5 mm
Overspeed contact included
Rope out protection included

Protection plate (optional) - Hardened groove (optional)
