KWIKFIX PRO Replacement Mains / Emergency Power Unit

Product Code: PRO/LO/EM

Members - please login for prices

How to use Order Form?

Product Description

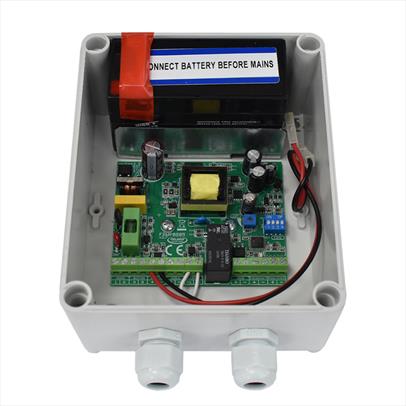

Replacement Power Unit for our KWIKFIX PRO Range

KWIKFIX PRO is the latest development in the hugely successful Kwikfix LED lighting range.

This replacement unit performs to the same high standard of our basic range but now features some brand new innovative options.


  • A versatile timing system working off a simple volt free signal that automatically switches off or dims the lights to 5% after a pre-set time of 10-70 minutes.
  • Fully dimmable lighting when in normal operation.
  • Simple Key switch facility that allows the car lights to be switched off in the evenings or when the building is not in use.
  • 3 Hour emergency back-up
  • Fully tested
  • Battery status indicator - Full monitoring
  • Eco saving systems compatible
  • Can be used in conjunction with our 'Light watcher' unit. These vibration sensors are the perfect way to manage your lighting systems without the use of PIR'S - (Product code ART.20435)

For full product specification and installation manual please use the pdf file below.

Technical Information:

  • Low operating temperature
  • Long Life: 50,000 hour lifespan
  • Emergency back-up as standard

Technical Specification:
IP Rating IP65
Weight 980g
Dimensions 110mm x 210mm x 70mm
Input Voltage 230VAC
Input Frequency 50Hz
Output Voltage 12V(±5%)
Output Current 1.66A
Material ABS (Acrylonitrile Butadiene Styrene)
