KWIKFIX LED Down Lighting Kits - HOLE CUT OUT 55mm - 70mm - With Retaining Springs & Anti Theft Strap

Product Code: 2LEDC

Members - please login for prices

How to use Order Form?

Product Description

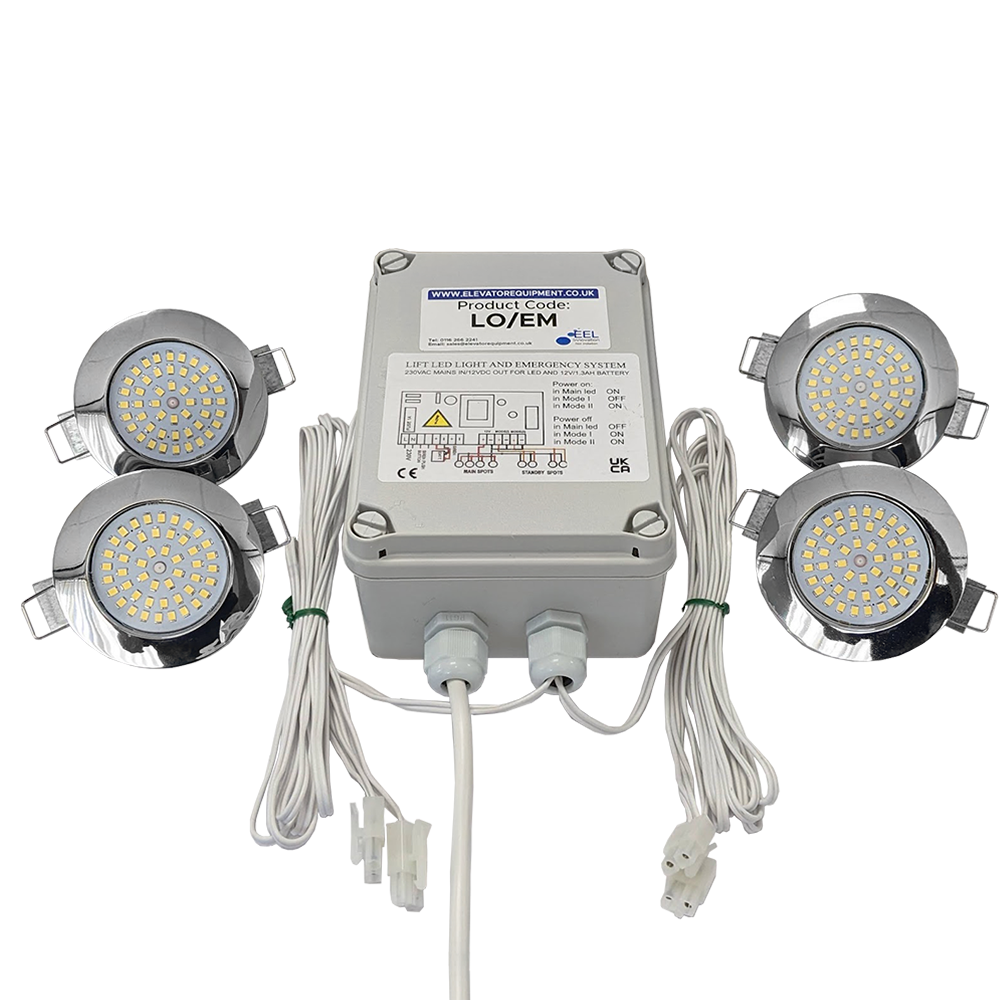

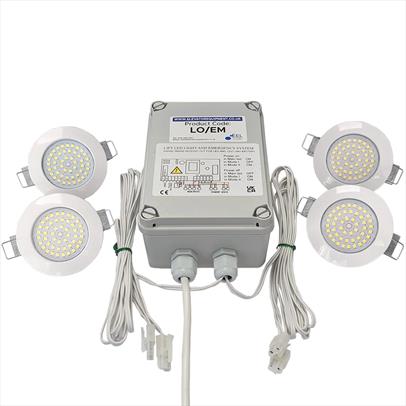

KWIKFIX LED Downlighting Kit - 55mm - 70mm Hole Cut Out- With Retaining Springs & Anti Theft Strap

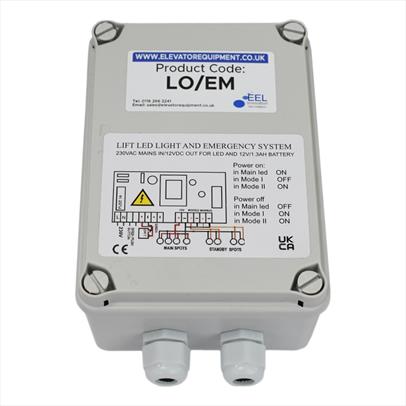

Prior to despatch, all our kits are fully tested and pre-wired. All you need to do is fit the lamps into the ceiling. Find a suitable place to mount the mains/emergency unit, connect up the battery and find a 230V power supply.

These lamps are suitable for a 55-70mm ceiling cut out.
​Lamp depth 35mm

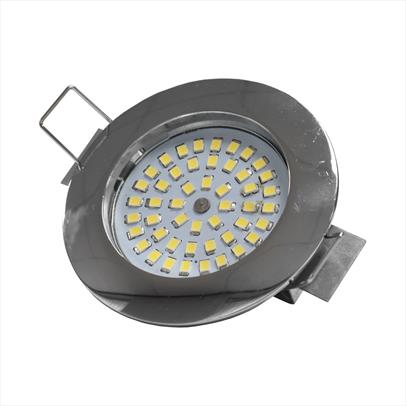

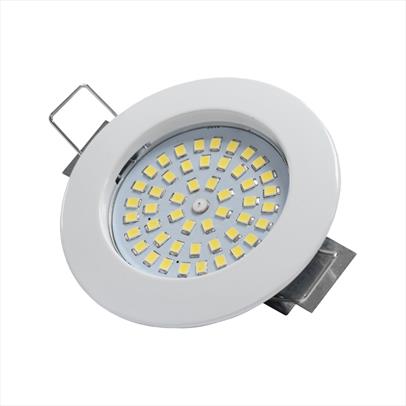

The lamps have a set of retaining springs and an anti tamper-proof strap.

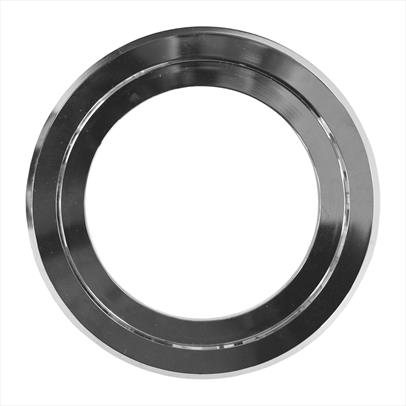

Aluminium Nickel Plated extension rings are available to allow these lamps to fit into holes up to 84mm. We stock cool white light lamps. ​Warm White available by special request.

For full product specification and installation manual please use the pdf file below.


Electrical Characteristics

  • Nominal power consumption 2,7W
  • Rated power consumption 2,7W
  • Nominal Operating Voltage 210-240V
  • Lamp equivalent 50W
  • Rated efficacy 145 lm/W
  • Operating frequency 50 - 60Hz
  • Operating current 0,086Α
  • Power Factor 0,99
  • ​CRI 75

Lighting characteristics

  • Beam angle 120 °
  • Number of LEDs 48
  • Nominal luminous flux (6000K) 391lm
  • Rated luminous flux (6000K) 391lm
  • Color Temperature 6000k (Cool White)
  • Rated Lifetime: 50.000 hrs

These lighting kits must be wired directly into a constant 230V supply. Some control systems have power saving devices, you must not connect to systems of this nature.
