KWIKFIX LED Down Lighting Kits - HOLE CUT OUT 53mm - 70mm - No Retaining Springs / Anti Theft Strap Only

Product Code: 2LEDCX

Members - please login for prices

How to use Order Form?

Product Description

Benefits

  • Energy saving up to 95%
  • No IR and UV radiation.
  • Mercury free.

Electrical Characteristics

  • Nominal power consumption 2,7W
  • Rated power consumption 2,7W
  • Nominal Operating Voltage 210-240V
  • Lamp equivalent 50W
  • Rated efficacy 145 lm/W
  • Operating frequency 50 - 60Hz
  • Operating current 0,086Α
  • Power Factor 0,99
  • ​CRI 75

Lighting characteristics

  • Beam angle 120 °
  • Number of LEDs 48
  • Nominal luminous flux (6000K) 391lm
  • Rated luminous flux (6000K) 391lm
  • Color Temperature 6000k (Cool White)
  • Rated Lifetime: 50.000 hrs

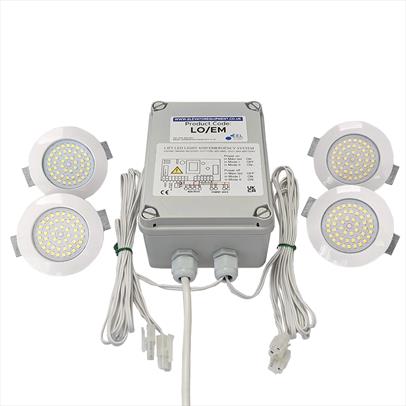

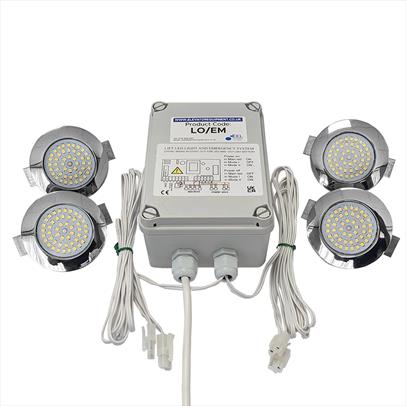

EASY TO INSTALL:

Prior to despatch, all our kits are fully tested and pre-wired. All you need to do is fit the lamps into the ceiling. Find a suitable place to mount the mains/emergency unit, connect up the battery and find a 230V power supply.

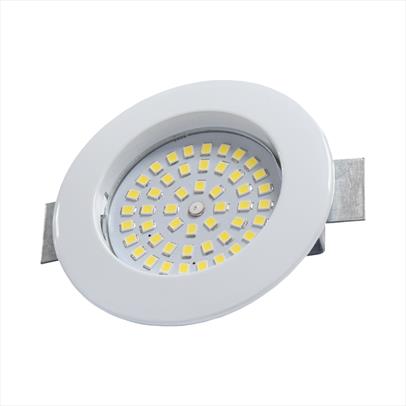

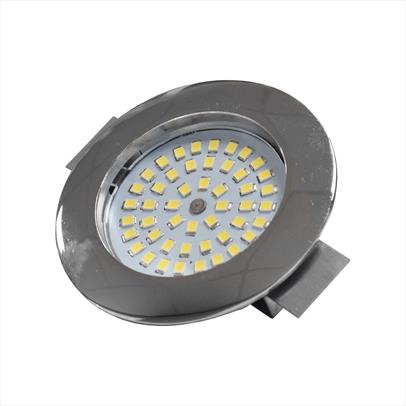

These lamps are suitable for a 53-70mm ceiling cut-out.
​Lamp depth 35mm

Please note that these lamps do not have retaining springs but they do have an anti theft strap to lock them into the ceiling. You will need access to the rear of the ceiling to install this version of the lamp.

Aluminium Nickel Plated extensions rings are available to allow these lamps to fitted into holes up to 84mm .We stock cool white light lamps. ​Warm White available by special request.

IMPORTANT NOTE

These lighting kits must be wired directly into a constant 230V supply. Some control systems have power saving devices, you must not connect to systems of this nature.
