ANGLED KWIKFIX LED Down Lighting Kit - HOLE CUT OUT 75mm With Retaining Springs

Product Code: 2LEDC/ANG

Members - please login for prices

How to use Order Form?

Product Description

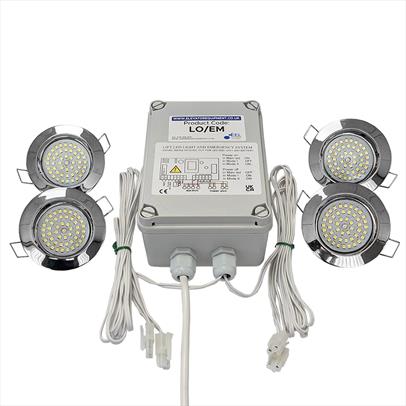

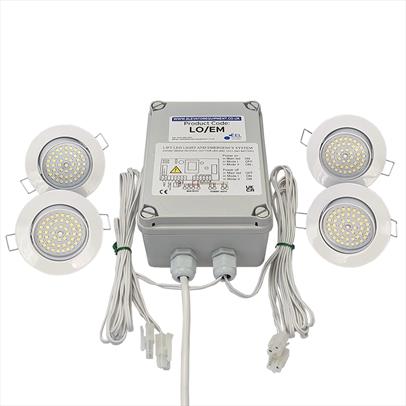

ANGLED KWIKFIX LED Downlighting Kit - 75mm Hole Cut Out - With Retaining Springs

Prior to despatch, all our kits are fully tested and pre-wired. All you need to do is fit the lamps into the ceiling. Find a suitable place to mount the mains/emergency unit, connect up the battery and find a 230V power supply.

These lamps are suitable for a 75mm ceiling cut out.
​Lamp depth 24mm
The lamps have a set of retaining springs
External diameter 80mm

Each lamp can be individually angled

For full product specification and installation manual please use the pdf file below.


Electrical Characteristics

  • Nominal power consumption 2,7W
  • Rated power consumption 2,7W
  • Nominal Operating Voltage 210-240V
  • Lamp equivalent 50W
  • Rated efficacy 145 lm/W
  • Operating frequency 50 - 60Hz
  • Operating current 0,086Α
  • Power Factor 0,99
  • ​CRI 75

Lighting characteristics

  • Beam angle 120 °
  • Number of LEDs 48
  • Nominal luminous flux (6000K) 391lm
  • Rated luminous flux (6000K) 391lm
  • Color Temperature 6000k (Cool White)
  • Rated Lifetime: 50.000 hrs

These lighting kits must be wired directly into a constant 230V supply. Some control systems have power saving devices, you must not connect to systems of this nature.
