3W Self Test Emergency Back-up For ALD LED Panel Range
Product Code: LED/ALD/EMST
Product Description
3W Self Test Emergency Back-up For ALD LED Panel Range
Self-test emergency back-up unit for LED car lighting ceiling panels.
Technical Information:
- 3 hour emergency operation time
- Built-in self-test function according to BS-EN-62034-2012
- Easy plug & play installation

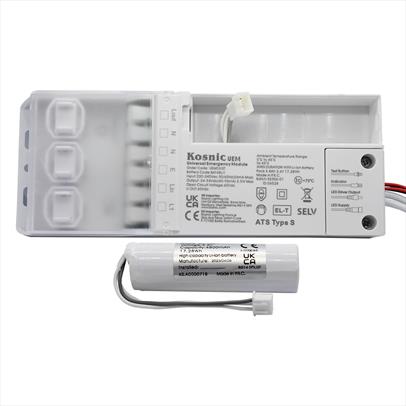

- Internal Li-ion battery with improved lifespan
- Easy battery replacement
- Features loop-in & loop-out push-wire terminals
| Technical Specification: | |
|---|---|
| IP Rating | IP20 |
| Weight | 285g |
| Input Voltage | 220-240VAC |
| Output Voltage | 24-54VDC |
| Output Current | 40-95mA |
| Output Wattage | 3.5W |
| Battery Voltage | 3.6V |
| Battery Capacity | 4800mAh |
| Charging Time | 24h |
| Battery Lifetime | 4 Years |
