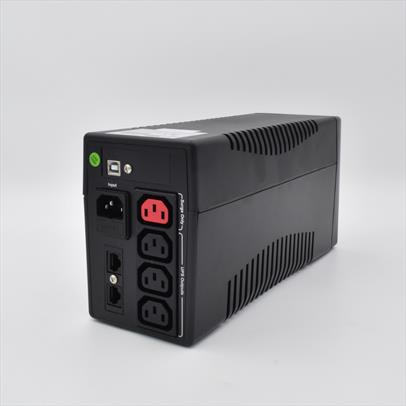

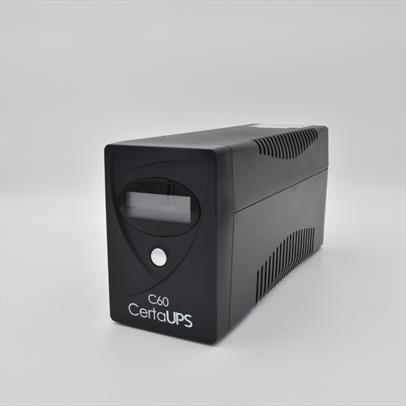

CERTA UPS C60 - 2000VA Line Interactive
Product Code: C60-800
Product Description
UPS Uninterruptible Power Supply Systems - CERTA UPS C60 - Single Phase
The CertaUPS C60 single phase UPS range presents the next generation of true online double conversion UPS solutions, housed in a sophisticated tower uninterruptible power supply.
These UPS are plug and play and are Ideal for small to small sized ideal for backup power requirements such as emergency brake release systems, shaft lighting, car lighting, lift control systems, CCTV and security systems.

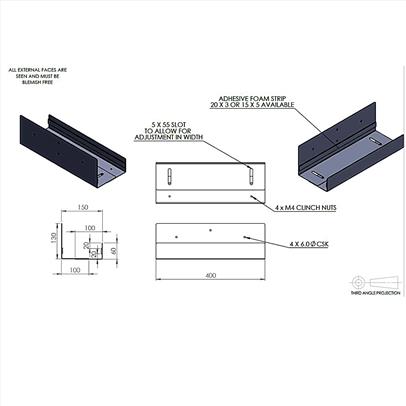

Support Bracket Option:
Existing UPS units can vary in size so we offer an external supporting bracket designed for our replacement UPS units. It is also recommended that to prolong the battery life of a UPS power system, good ventilation is strongly advised. So, it is recommended that you install the UPS units on the outside of the lift control cabinet. This is not essential but good practice.
Technical Information:
CertaUPS C60 Series;
- C60-800 - CertraUPS C60 - 800VA - 3 minutes runtime
- C60-1000 - CertraUPS C60 - 1000VA - 3 minutes runtime
- C60-1500 - CertraUPS C60 - 1500VA - 3 minutes runtime
- C60-2000 - CertraUPS C60 - 2000VA - 2 mintues runtime
Full product specification can be viewed in the PDF below.
| Technical Specification: | |
|---|---|
| Input Voltage | 220/230/240VAC |
| Input Voltage Tolerance Range | 162-290VAC |
| Input Frequency | 50/60Hz (Auto Sensing) |
| Output Voltage | 220/230/240VAC (±10%) |
| Output Freqency | 50/60Hz (±1Hz) |
| Battery DC Voltage | 12VDC (800VA) 24VDC (1000/1500/2000VA) |
| Operating Temperature | 0°C - +25°C |
| Storage Temperature | 0°C - +40°C |
| Dimensions (W x D x H) | 100 x 285 x 142 (800VA) 146 x 350 x 160 (1000VA) 146 x 397 x 205 (1500VA/2000VA) |
| Weight | 4.9KG (800VA) 8KG (1000VA) 11.1KG (1500VA) 11.5KG (2000VA) |
