CERTA UPS C400 - 1000VA - 3000VA Online Double Conversion
Product Code: C400-010-B
Product Description
UPS Uninterruptible Power Supply Systems - CERTA UPS C400 - Single Phase

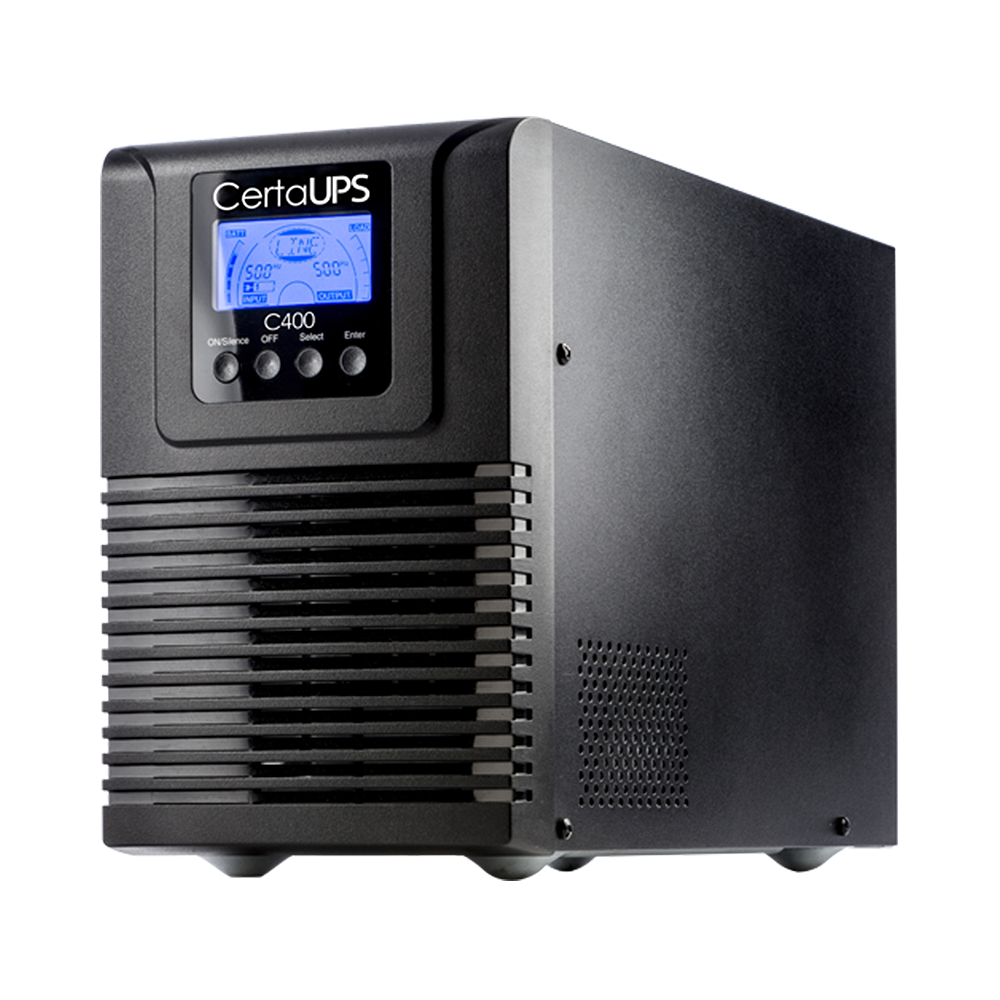

The CertaUPS C400 single-phase UPS range presents the next generation of true online double conversion UPS solutions, housed in a sophisticated tower uninterruptible power supply.
These UPS are plug-and-play and ideal for small to medium-sized backup power requirements such as emergency brake release systems, shaft lighting, car lighting, lift control systems, CCTV and security systems.
Technical Information:
CertaUPS C400 Series;
- C400-010-B - CertraUPS C400 - 1000VA - 5 minutes runtime
- C400-010-30 - CertraUPS C400 - 1000VA - 30 minutes runtime
- C400-010-90 - CertraUPS C400 - 1000VA - 90 minutes runtime
- C400-020-B - CertraUPS C400 - 2000VA - 5 minutes runtime
- C400-020-30 - CertraUPS C400 - 2000VA - 30 minutes runtime
- C400-020-90 - CertraUPS C400 - 2000VA - 90 minutes runtime
- C400-030-B - CertraUPS C400 - 3000VA - 5 minutes runtime
- C400-030-30 - CertraUPS C400 - 3000VA - 30 minutes runtime
- C400-030-90 - CertraUPS C400 - 3000VA - 90 minutes runtime
Full product specifications can be viewed in the PDF below.
| Technical Specification: | |
|---|---|
| Input Voltage | 220/230/240VAC |
| Input Voltage Tolerance Range | 110-330VAC |
| Input Frequency | 50/60Hz (Auto Sensing) |
| Output Voltage | 220/230/240VAC (±10%) |
| Output Frequency | 50/60Hz (±10%) |
| Battery DC Voltage | 24VDC (1000VA) 48VDC (2000VA) 72VDC (3000VA) |
| Operating Temperature | 0°C - +40°C |
| Storage Temperature | -10°C - +50°C |
| Dimensions (W x D x H) | 144 x 228 x 356 (1000VA) 190 x 327 x 399 (2000VA/3000VA) |
| Weight | 9.2KG (1000VA) 17.4KG (2000VA) 22.7KG (3000VA) |
