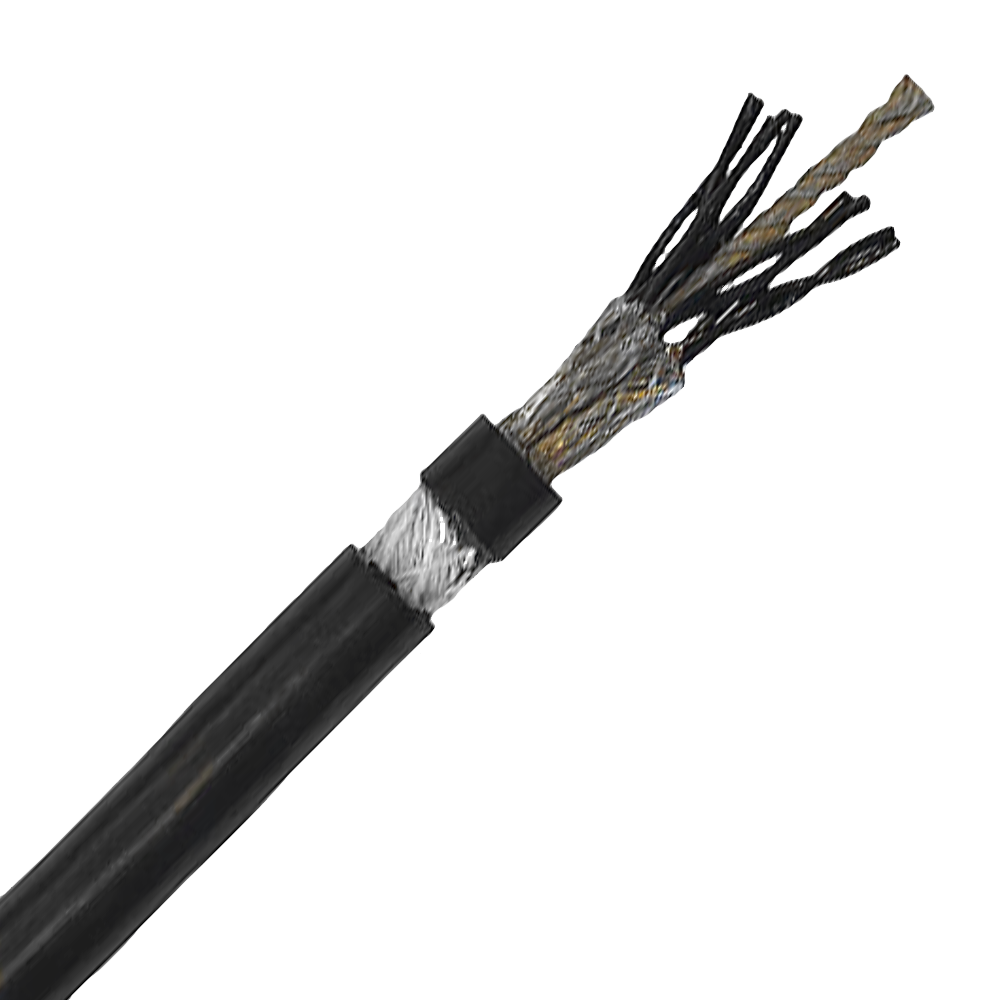

PVC Round Trailing Cable - Halogen Free - 6 x (2 x 0.75mm) C – Twisted pair, Shielded

Product Code: ART.063663

Members - please login for prices

How to use Order Form?

Product Description

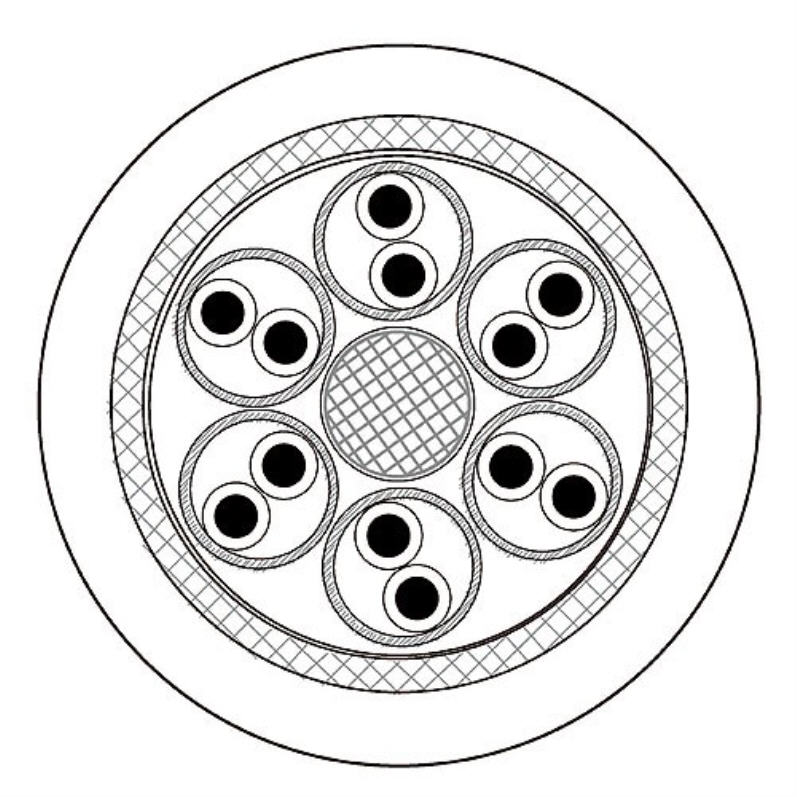

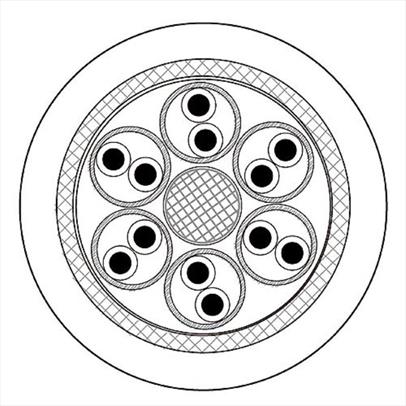

Construction

Bare copper strand.
Lead insulation: special thermoplastic, black with white numerical imprints.
Leads twisted pair, shielded, covering degree approx. 80 %.
Sheath: PUR acc. to EN 50363-10-2, halogen-free.
oil-resistant acc. to EN 60811-404
flame retardant acc. to EN 60332-2-2.

Specification

Bending radius - flexible use: 12 x outer diameter
Natural loop - 500mm
Rated voltage U0 /U - 500V
Resistance - 100 MΩ/km
Temperature range -25°C up to +90°C
Maximum hoisting height - 70m
Max. rated speed - 1.6m/s

Accessories:

Compatible cable suspension sets:

ART.063663 – Cable Suspension set – ART.008078

Deliverable as cut goods or 500m drum
