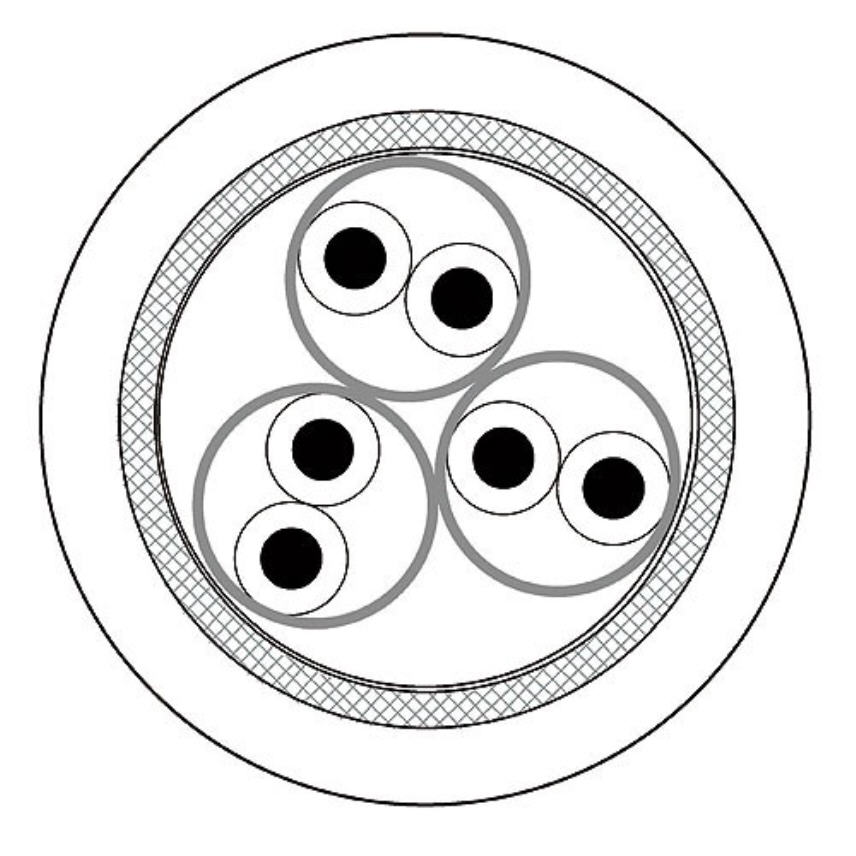

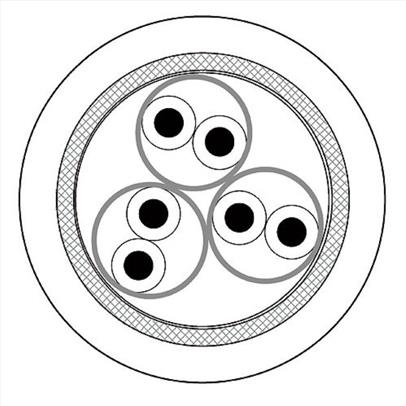

PVC Round Trailing Cable - Halogen Free 3 x (2 x 0.75mm) C – Twisted pair, Shielded

Product Code: ART.063975

Members - please login for prices

How to use Order Form?

Product Description


Bare copper strand.
Lead insulation: special thermoplastic, black with white numerical imprints.
Leads twisted pair, shielded, covering degree approx. 80 %.
Sheath: PUR acc. to EN 50363-10-2, halogen-free.
Oil-resistant acc. to EN 60811-404
Flame retardant acc. to EN 60332-2-2.

Travelling cable for lifts.
Highly flexible control cable, at medium mechanical stress
In dry and damp rooms
Suitable for telephone and emergency call travelling cable and for card reader

Bending radius - flexible use: 12 x outer diameter
Natural loop - 500mm
Rated voltage U0 /U - 500V
Resistance - 100 MΩ/km
Temperature range -25°C up to +90°C
Maximum hoisting height - 70m
Max. rated speed - 1.6m/s


Compatible cable suspension sets:

ART.063975– Cable Suspension set – ART.008079
