PVC Round Trailing Cable - Halogen Free - 24G1

Product Code: ART.051290

Members - please login for prices

How to use Order Form?

Product Description

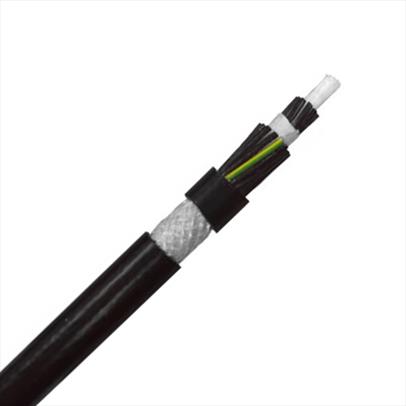

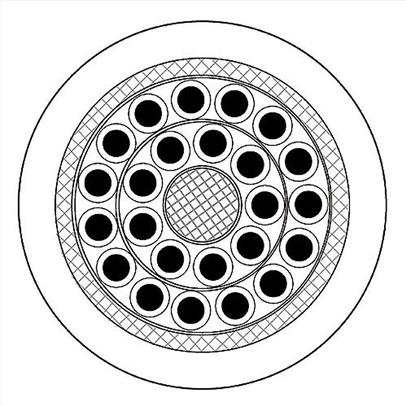

Construction - 24 Core

Bare, finest gauge copper strand, acc. to DIN EN 60228, class 6.
Lead insulation: halogen-free materials, black with white numerical imprint.
Leads stranded around a central carrier element.
Textile banding between the leads and the sheath.
Sheath: Ethylen Copolymer HM2 acc. to EN 50363-24, halogen-free, flame retardant acc. to IEC 60332-1-3.
Cable, flexible at low temperatures.
​Approx. Outer diameter 22.0mm

Specification

Bending radius - flexible use: 12 x outer diameter
Rated voltage U0 /U - 300/ 500V
Temperature range flexible: -25°C up to +70°C
Maximum hoisting height - 80m
Max. rated speed - 1.6m/s

Accessories

Compatible cable suspension set for machine room above and below. - Product code 008074
Max hang weight 35kg

Deliverable as cut goods or 500m drum
