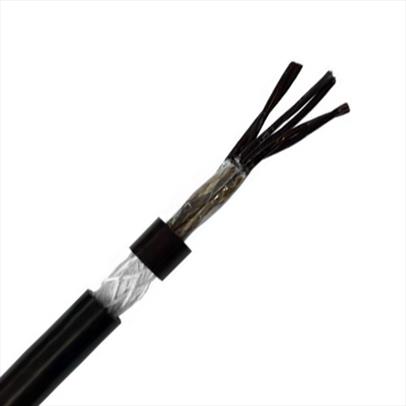

PVC Round Trailing Cable - 3 x (2 x 0.75mm) C – Twisted Pair - Shielded

Product Code: ART.051313

Members - please login for prices

How to use Order Form?

Product Description

Construction

Bare copper strand, class 5.
Lead insulation: PVC acc. to EN 50363-3.
Leads stranded in 4 pairs around a central steel carrier element.
Shielding braid of tinned copper, covering degree approx. 70%.
Sheath: PVC acc. to EN 50363-4-1.

Specification

Bending radius - flexible use: 12 x outer diameter
Natural loop - 500mm
Rated voltage U0 /U - 500V
Resistance - 100 MΩ/km
Temperature range -5°C up to +70°C
Maximum hoisting height - 70m
Max. rated speed - 1.6m/s
Approx. outer diameter 13.9mm

Accessories:

Compatible cable suspension sets:

ART.051313 – Cable Suspension set – ART.008079

Deliverable as cut goods or 500m drum
