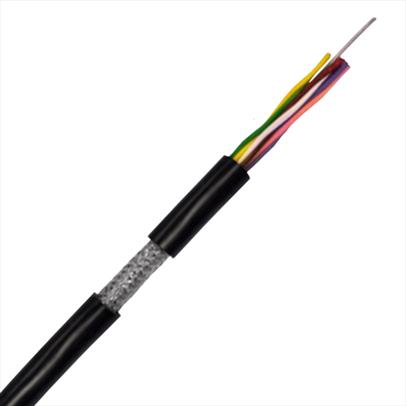

PVC Round Telephone And Emergency Call Trailing Cable (4 x 2 x 0.34mm) C – Shielded

Product Code: ART.051312

Members - please login for prices

How to use Order Form?

Product Description

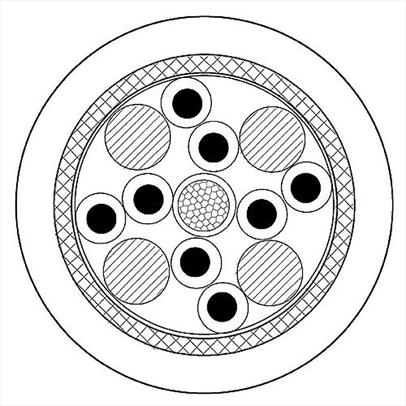

Construction

Bare copper strand, class 5.
Lead insulation: PVC acc. to EN 50363-3.
Leads stranded in 4 pairs around a central steel carrier element.
Shielding braid of tinned copper, covering degree approx. 70%.
Sheath: PVC acc. to EN 50363-4-1.

Specification

Bending radius - flexible use: 15 x outer diameter
Natural loop - 480mm
Rated voltage U0 /U - 100/ 100V
Resistance - 57.20 Ω/km
Temperature range flexible: -15°C up to +70°C
Maximum hoisting height - 110m
Max. rated speed - 1.6m/s
​Aprox.outer diameter 9.3mm

Accessories:
Compatible cable suspension sets:

ART.051312 – Cable Suspension set – ART.008080

Deliverable as cut goods or 500m drum
