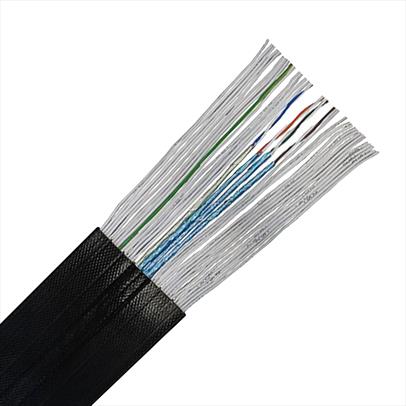

PVC Flat Trailing Cable – Halogen Free - 28G 0.75 + 4 x (2 x 0.34) ST

Product Code: ART.064036

Members - please login for prices

How to use Order Form?

Product Description

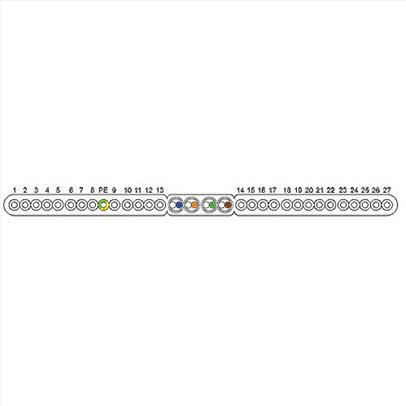

Construction flat travelling cable

Bare, finest gauge copper strand.
Leads 0.75mm² arranged in parallel groups.
Leads 0.34mm² twisted pair, shielded with AI-PET foil covering degree 100 %.
Lead insulation 0.75mm²: PVC, white with black numerical imprints.
Lead insulation 0.34mm²mm²: PVC, coloured
1. pair: white/blue
2. pair: white/orange
3. pair white/green
4. pair: white/brown
Sheath: Halogen free acc. To IEC 60754

Specification

Dimensions 28G0,75mm² + 4 x (2 x 0,34mm²) ST
Outer measure 4,7mm x 86,4mm
Weight 625kg/km
Copper weight 208,7kg/km
Suspension height max. 45m
Lifting height max. ca. 80m
Rated speed max. 1,6m/sec (acc. EN50214)
Temperature range -15°C bis +70°C
Sheath material Special PVC acc. HD21: TI1,2
Nominal voltage U0 /U 0,75mm² - 300/500V
Nominal voltage U0/U 0,34mm² - Max 100V
Impedance on braided signal pairs 110 Ω ±10%
Bending radius static 45mm
Natural loop 550m


If travelling cables frequently hit blunt edges due to the up and down motion, the product life can be negatively impacted. For this reason it is recommendable to effect the mounting in the shaft at a smooth uncovered concrete wall.
Deliverable as cut goods or as a 500m drum.
G= with protective conductor

Accessories:

Compatible cable suspension sets:

ART.064036 – Cable Suspension Set – Machine Room Above – ART.008086
​ART.064036 – Cable Suspension Set – Machine Room Below – ART.008085
