PVC Flat Trailing Cable 24 Core - 1.00mm - Halogen Free - LSOH

Product Code: ART.051520

Members - please login for prices

How to use Order Form?

Product Description

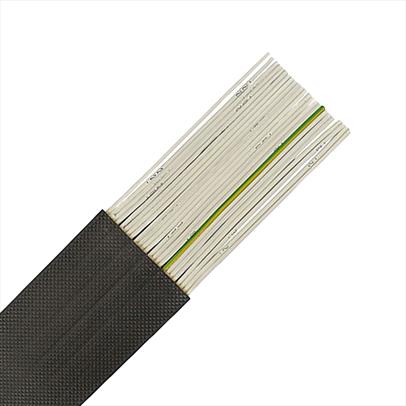

PVC Flat Travelling Cable 24G 1.00mm – Halogen Free

Construction flat trailing cable

Flat travelling cable according to EN 50214.

Bare, finest gauge copper strand.
Lead insulation: PVC, white with black numerical imprints.
Sheath: Halogen free, acc. to IEC 60754

The materials used in manufacture contain no silicone

Technical Specification:

Suspension Height – max.45m
Lighting Height – max. approx. 85m
Rated speed 1.6m/s acc. to EN 50214. Manufacture rated speed up to 4m/s
Temperature range -15°C up to +70°C
Sheath Material – Polyolefin Compound FRLSHF (Halogen Free)
Insulation – Polyolefin Compound FRLSHF (Halogen Free)
Sheath Colour – Black, RAL 9055
Colour Marking of Cores – White Cores Numbered, 1 Green/Yellow acc. to EN 50334
Wire Construction – Flexible Bare Copper Conductor, Class 5 acc. to IEC 60228
Nominal Voltage U0 /U – 300/500V
Test Voltage – 2000V
Bending Radius – 25 x Cable Thickness / approx..350mm

Accessories:

Compatible cable suspension sets:
Machine Room Above – ART.008084
​Machine Room Below – ART.008083
Single Wedge Clamps Only – ART.063561 (Available from the drop down box in either Suspension Set below)
