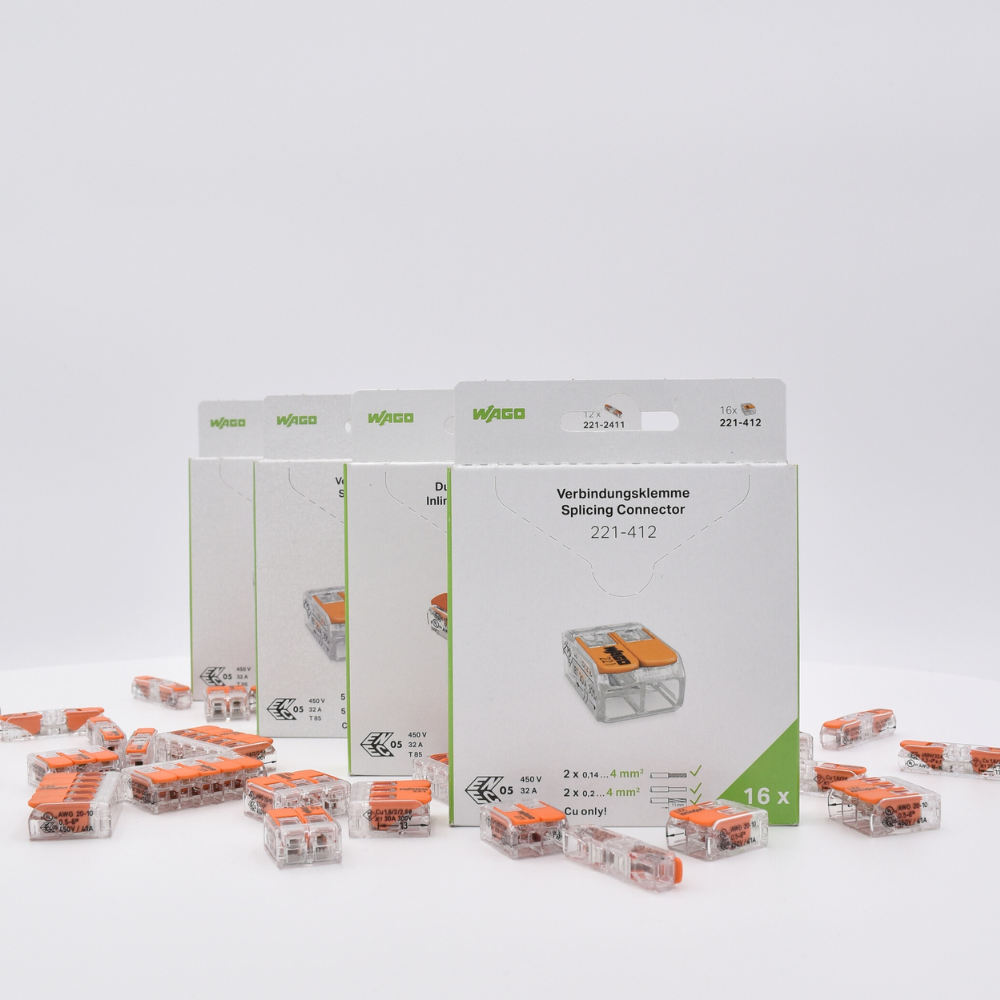

Wago Splicing Connector Packs

Product Description

The Wago Splicing Connector Pack offers a fast, safe and tool-free solution for connecting copper conductors. Featuring the reliable CAGE CLAMP® technology and a simple lever mechanism, it’s ideal for a wide range of electrical installations — from compact enclosures to high-power applications.

Designed to save time on-site and reduce installation complexity, these compact connectors are trusted worldwide for their performance and ease of use.

Key Features:

• Tool-free operation – lift the lever, insert the conductor, push the lever back down

• Connect solid, stranded and fine-stranded copper conductors

• Side-entry wiring for efficient layout and space-saving installs

• Suitable for worldwide use in residential, commercial and industrial settings

• Compatible with mounting carriers that conform to installation standards

• Available in Inline,2-, 3-, and 5-wire variants

Technical Specifications:

• Connection technology: CAGE CLAMP®

• Actuation type: Lever

• Connectable conductor materials: Copper

• Nominal cross-section: 4 mm² / 12 AWG

• Conductor size range:

  • Solid: 0.2 – 4 mm² / 24 – 12 AWG

  • Stranded: 0.2 – 4 mm² / 24 – 12 AWG

  • Fine-stranded: 0.14 – 4 mm² / 24 – 12 AWG

• Strip length: 11 mm (0.43 inches)

• Wiring direction: Side-entry
