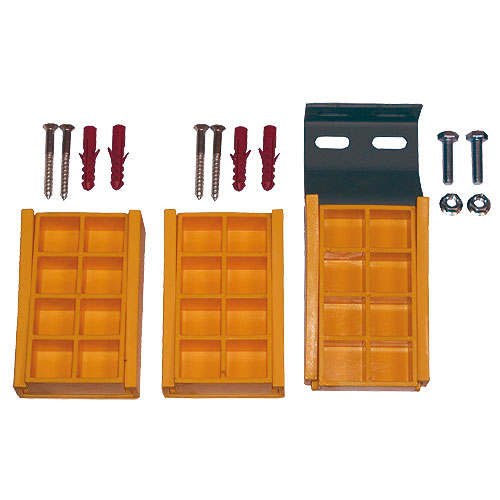

Flat Cable Suspension Wedge Clamp 80mm Machine Room Above Kit

Product Code: ART.008084

Members - please login for prices

How to use Order Form?

Product Description

Flat cable suspension sets for machine room above. For flat cable suspension big, maximum cable width: 90mm.

Maximum cable hang up weight ART.008084: 42kg

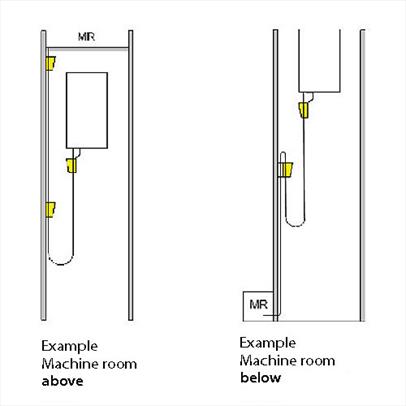

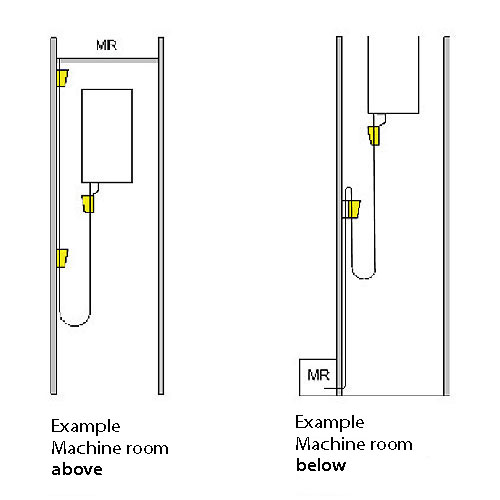

Suspension set with flat cable suspension ART.063561 for machine room above.

Please note the cable manufacturer’s information.



Cable suspension set 10 x 80 for machine room above.

​​For flat cable suspension big, maximum cable width: 80mm.
Maximum cable thickness 8mm
Maximum cable hang up weight: 42kg
Max. total cable size – 17 x 80mm
Material – PA6.6 halogen-free
​Temperature range -20°C up to +50°C



Suitable for EEL Flat travelling cable 6 core, 12 Core, 24 Core 0.75mm and 1.00mm. CAT 7 Single and CAT 7 4 core. EEL Flat Combination travelling cable 24 Core

Flat Travelling Cable.

Product Code:

ETC106

ETC112

ETC124

ETC206

ETC212

ETC224

ETC306HF

ETC312HF

ETC324HF

ETC424

ETC424HF
