Product Description
Flat cable suspension set small for machine room below. For flat cable suspension small, maximum cable width: 50mm.
Maximum cable hang up weight ART.008081: 30kg.

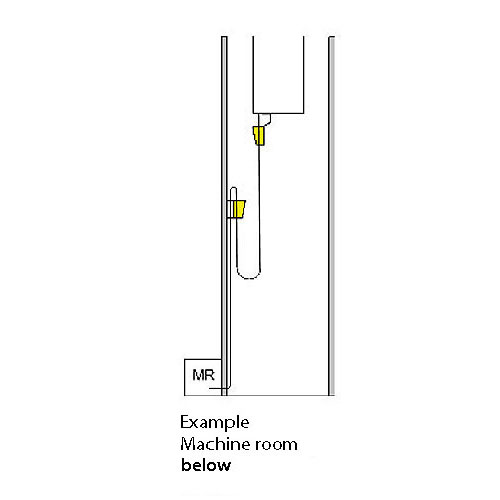

Suspension set with flat cable suspension ART.008008 for machine room below.
Please note the cable manufacturer’s information.

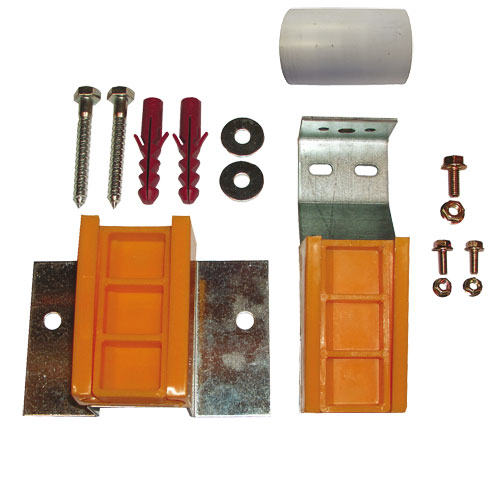

Cable suspension set 10 x 50 for machine room below
Maximum cable thickness 5mm
For flat cable suspension small, maximum cable width: 50mm.
Max. hang up weight – 30kg for dynamic load
Max. total cable size – 10.0 x 50.0mm
Min. insert depth of the wedge – 60mm (60%)
Material – PA6.6 halogen-free
Temperature range -20°C up to +50°C
Suitable for EEL Flat travelling cable 6 core, 12 Core 0.75mm and 1.00mm. CAT 7 Single and CAT 7 4 core.
Flat Travelling Cable.
Product Code:
ETC106
ETC112
ETC206
ETC212
ETC306HF
ETC312HF
