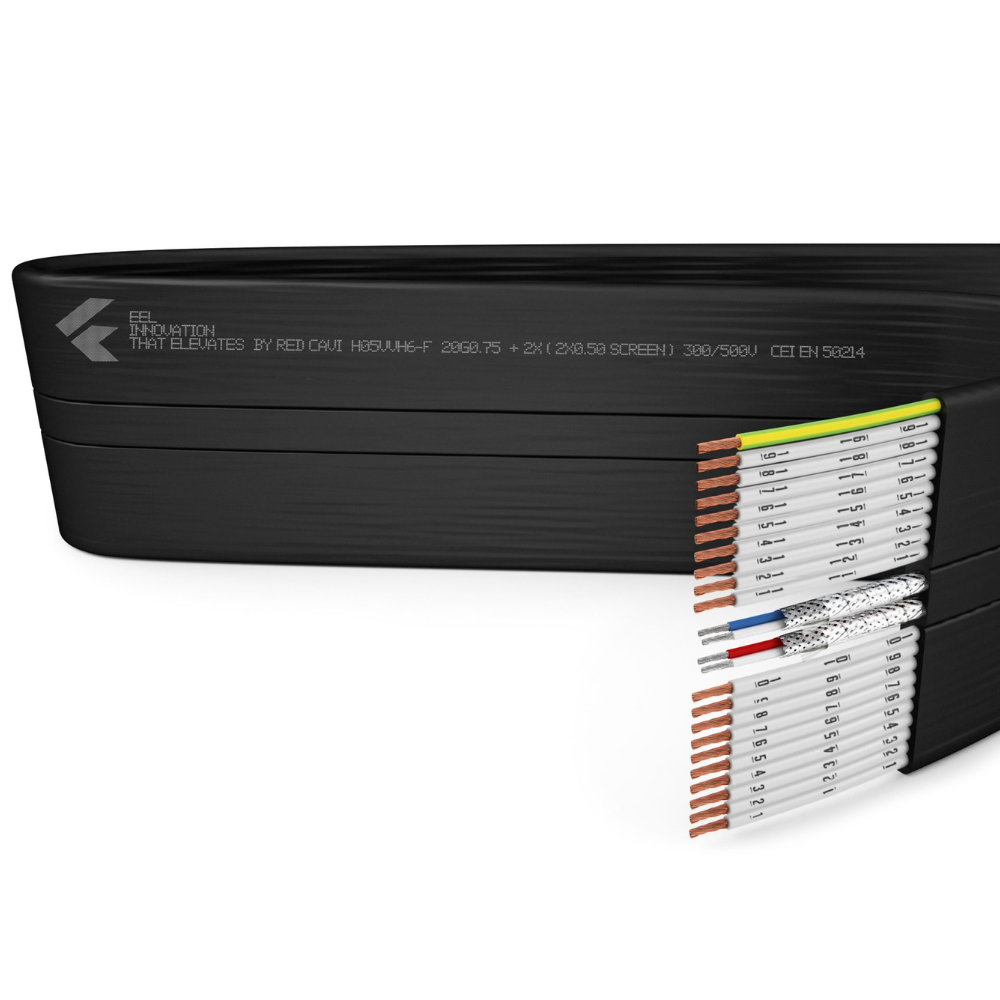

EEL PVC Combination Lift Travelling Cable – 0.75mm – 24 Core

Product Code: ETC424

Members - please login for prices

How to use Order Form?

Product Description

All orders of 25 metres or more will be delivered via a wooden drum. This will incur a surcharge of £15.00, which you will find in the drop down box above.

The surcharge will be refunded when the drum has been returned. - Product Code: W/DRUM

Description

Flexible flat cable for passenger and goods lifts with units of telecommunication, Intercom Systems, Keypads, Indicators, CCTV, and Voice synthesis

Conductor

Plain copper flexible wire, class 5

Sheath Colour

Black

Insulation

PVC compound, TI2 quality

Sheath

PVC compound, TM2 quality



Electric characteristics

Nominal voltage Uo/U: 300/500 V

Testing voltage: 2000 V

Working temperature: -5°C +70°C

Max. short circuit temperature: 150°



Installation conditions

Cable for mobile specific laying

Max. free suspension length: 45 m

Max. running speed: 4,0 m/s

Bending radius min.: 10 times thickness of cable

Max. tensile stress: 15 N/mm²

Operating min. temperature: 0°C



Flat 24 Core 0.75mm – PVC – 19 Numbered Cores & 2 x 0.50 Twisted Pairs, plus Earth

Dimension: 70mm x 5.20mm

Cable Net Weight: 701.40 g/m

Insulated Conductor: 2.25mm

All trailing cable is sold per meter.



Impedance Signal: 86.7 Ohm/km
