CAT-7 Cable – Halogen Free – 4 x 2 x 0.14mm
Product Code: ETC501
Product Description
All orders of 25 metres or more will be delivered via a wooden drum. This will incur a surcharge of £15.00, which you will find in the drop down box above.
The surcharge will be refunded when the drum has been returned. - Product Code: W/DRUM
Sold per metre
Specification

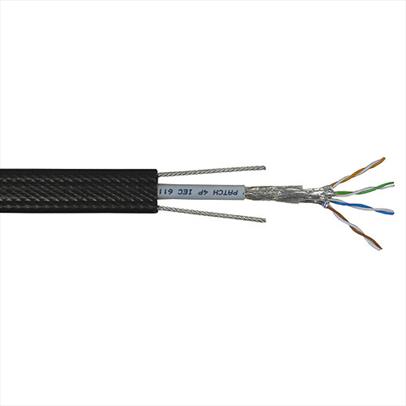

Flat travelling cable CAT 7 with two steel carrier elements.
Sheath: halogen-free, flame retardant.
Leads:
1. pair: white/blue
2. pair: white/orange
3. pair: white/green
4. pair: white/brown
The CAT cable is used for data communication with computer or similar equipment in the lift car. Can be used for video transmission systems and controlling monitors
Specification
Natural loop – max. 500mm acc. to EN50214
Test voltage – Lead/ lead 100V, Lead/ shield 100V
Maximum loop resistance – 250Ω/km
Maximum resistance difference – <3%
Temperature range moved: -15°C to +60°C
Maximum hoisting height – 90m
Maximum rated speed – 4m/s
Outer diameter – 7.5 x 18.0
