CAT-7 4 x Cable – PVC – 4 x 4 x 2 x 0.14mm
Product Code: ETC505
Product Description
All orders of 25 metres or more will be delivered via a wooden drum. This will incur a surcharge of £15.00, which you will find in the drop down box above.
The surcharge will be refunded when the drum has been returned. - Product Code: W/DRUM
Sold per metre
Specification

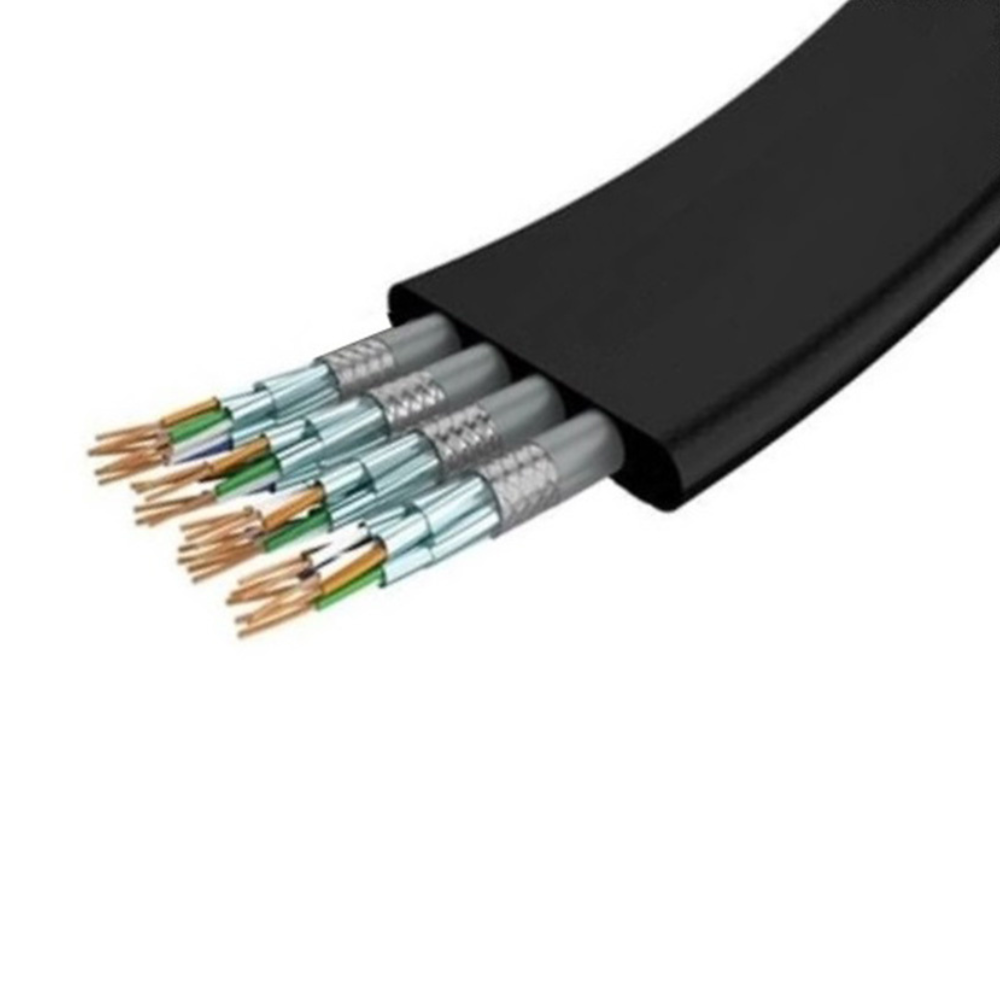

Flat travelling cable CAT 7
Sheath: special PVC compound according to EN 50363-4-1 TM 2 black similar to RAL9005 surface with knurling
Leads:
1. pair: white/blue
2. pair: white/orange
3. pair: white/green
4. pair: white/brown
The CAT cable is used for data communication with computer or similar equipment in the lift car. Can be used for video transmission systems and controlling monitors
Specification
Natural loop – max. 500mm acc. to EN50214
Test voltage – Lead/ lead 1000V, Lead/ shield 1000V
Maximum loop resistance – 292Ω/km
Maximum resistance difference – <3%
Temperature range moved: -15°C to +60°C
Maximum hoisting height – 60m
Maximum rated speed – 4m/s
Cable Dimensions – 27.5mm x 8.4mm
